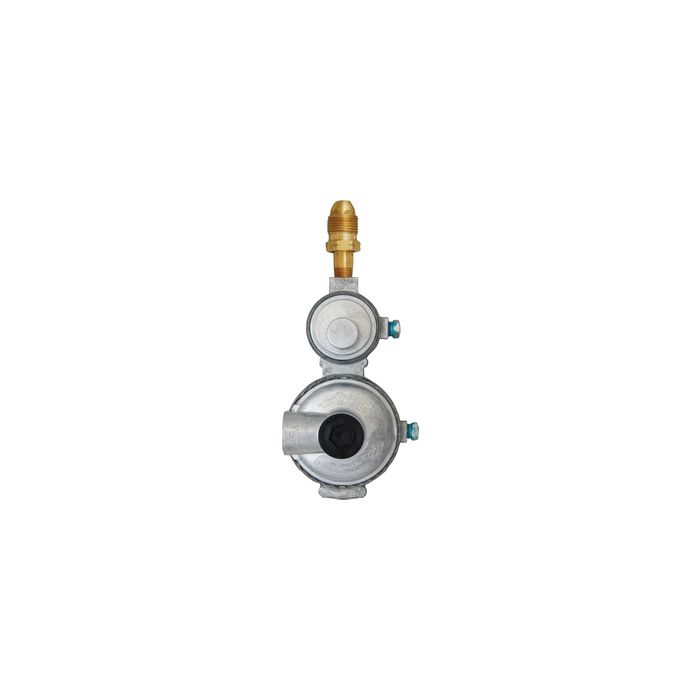

Marshal Excelsior Regulatr 2-Stg 9:00 Vent Hicap MEC MEGR295H
$76.99
In stock
SKU
JMS129340
Marshal Excelsior Regulatr 2-Stg 9:00 Vent Hicap MEC MEGR295H is available to buy in increments of 1
Marshal Excelsior Regulatr 2-Stg 9:00 Vent Hicap MEC MEGR295H
Marshal Excelsior Regulatr 2-Stg 9:00 Vent Hicap
Approved for use in nearly all portable applications and outdoor cooking appliances utilizing low pressure. They feature all zinc body construction, high and low 1/8" NPT pressure tap ports, an integral second stage drip lip vent and optional standard or 90° vent locations. High Capacity Compact Integral Two Stage Regulator is ideally suited for high demand RV, outdoor appliances, cabins, seasonal homes, gas fire places, water heaters, ranges or other moderate to low demand domestic home installations.(Green bonnet identifies high capacity model). Meets UL, RVIA and NFPA requirements.
- Type: Two Stage
- Max. Inlet Pressure: 250 PSI
- Outlet Connection: 3/8" FNPT
- Exterior Finish: Raw Zinc / Powder Coated
- Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal
- Diaphragm Type: Internal Relief - Spring Loaded
- Bonnet/ Body Material: Die Cast Zinc
- Listings: UL LISTED / UL 144
- Mounting Holes: 3-1/2" On Center
- Pressure Taps: 1/8" FNPT Plugged
Description: High Capacity
Inlet: HN Excess Flow POL
Vent: 90° Vent
Pkg.: Bulk
SKU: MEC MEGR295H 277-MEGR295H
Manufacturer Part Number: MEGR-295H
Category: RV Appliances / LPG Regulators
UPC Code | 815505013734 |
---|---|
Manufacturer Part Number | MEGR-295H |
Manufacturer | MARSHALL EXCELSIOR CO. |
