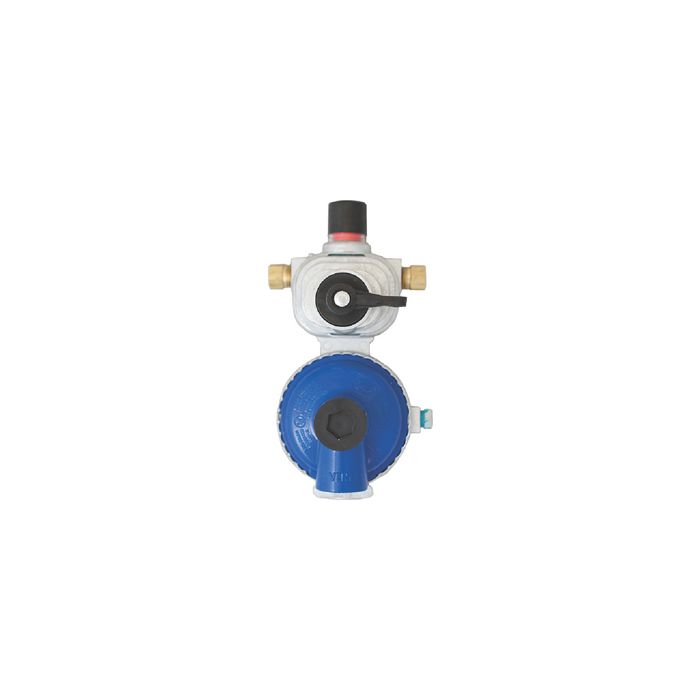

Marshal Excelsior Excelaflo Lc Auto Chg. Reg. MEC MEGR253LP

Marshal Excelsior Excelaflo Lc Auto Chg. Reg.

The Automatic Changeover Regulator automatically redirects LP gas vapor flow from an empty service cylinder to a reserve cylinder, without interruption of service. It features an easy to read green indicator which changes to red when the service cylinder needs to be refilled. Meets UL, RVIA and NFPA requirements.

• Type: Two Stage


• Max Inlet Pressure: 250 PSI


• Inlet Connection: 1/4" Female Inverted Flare


• Outlet Connection: 3/8" FNPT


• Exterior Finish: Raw Zinc / Powder Coat


• Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal


• Diaphragm Type: Internal Relief - Spring Loaded


• Bonnet/ Body Material: Die Cast Zinc


• Listings: UL LISTED / UL 144


• Mounting Holes: 3-1/2" On Center


• Pressure Taps: 1/8" FNPT Plugged

Description: Low Capacity
Pkg.: Clamshell

SKU: MEC MEGR253LP 277-MEGR253LP
Manufacturer Part Number: MEGR-253LP
Category: RV Appliances / LPG Regulators
