MARETRON MPOWER 12 CHANNEL DC LOAD MODUL

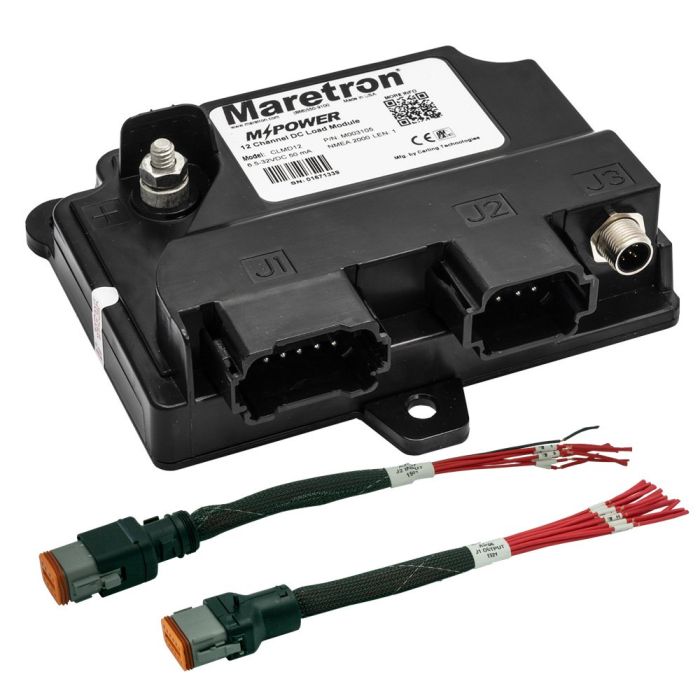

MARETRON MPOWER 12 CHANNEL DC LOAD MODUL MPower 12 Channel DC Load Module NMEA 2K with 12" Pigtail Adapter Cable for J1 & J2 ConnectorsDesigned for vessels of all sizes with smaller loads, the MPower CLMD12 is a compact 12-Channel DC Load Controller Module. Two of the 12 breakers handle a maximum of 12 amps, six handle a maximum of 10 amps, and four handle a maximum of 5 amps, with a total current capacity of 75 Amps. Additionally, circuits can be paralleled. If a smaller circuit needs to be protected, each of the 12 breakers can be set to trip at lower current levels using the new Maretron N2KAnalyzer V3 software. In addition, the CLMD12 has inputs for up to 7 hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc. The CLMD12 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD12 is that it reports the current through each of the 12 breakers. This allows
