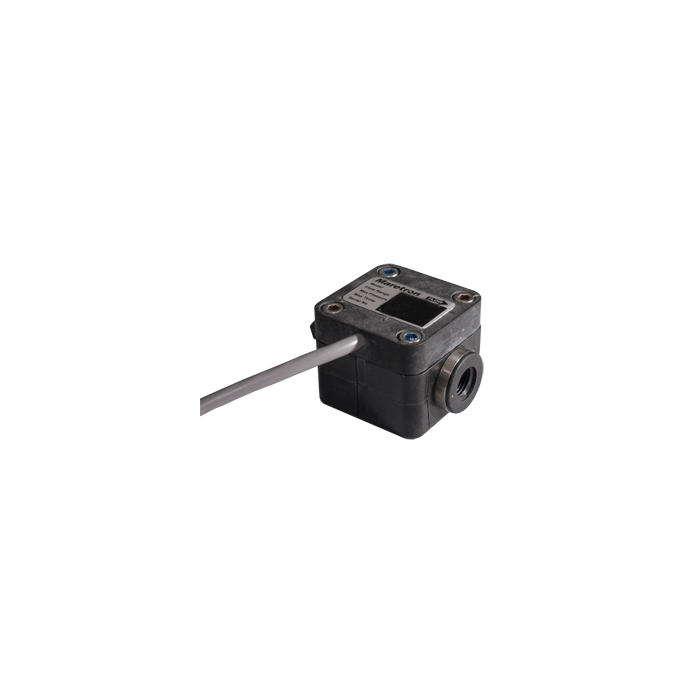

Maretron Fuel Flow Sensor - 2-100 LPH M1AR
$546.00
In stock
SKU
JMS129016
Maretron Fuel Flow Sensor - 2-100 LPH M1AR is available to buy in increments of 1
Maretron Fuel Flow Sensor - 2-100 LPH
Fuel Flow Sensor - 2-100 LPH
Features:
Features:
- Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)
- All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads
- Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal)
- Cable Length: 1m (3.28')
- Strainer Size: 200 Mesh (If not already installed after fuel filter)
- Port Size: 1/4" NPT Female
- Maximum Viscosity: 1000 cPs
- Maximum Operating Pressure: 68.95 Bar (1000 PSI)
- Weight: 775g (1.71 lb)
- Construction: Aluminum Housing Material
- Rotors: PPS (Ryton)
- Shafts: 316/304 Stainless Steel
- Magnets: Samarium Cobalt
- O-Ring: FKM (Viton™)
| UPC Code | 873804003528 |
|---|---|
| Manufacturer Part Number | M1AR |
| Manufacturer | Maretron |
