MARETRON 12 CIRCUIT BYPASS MODULE NMEA

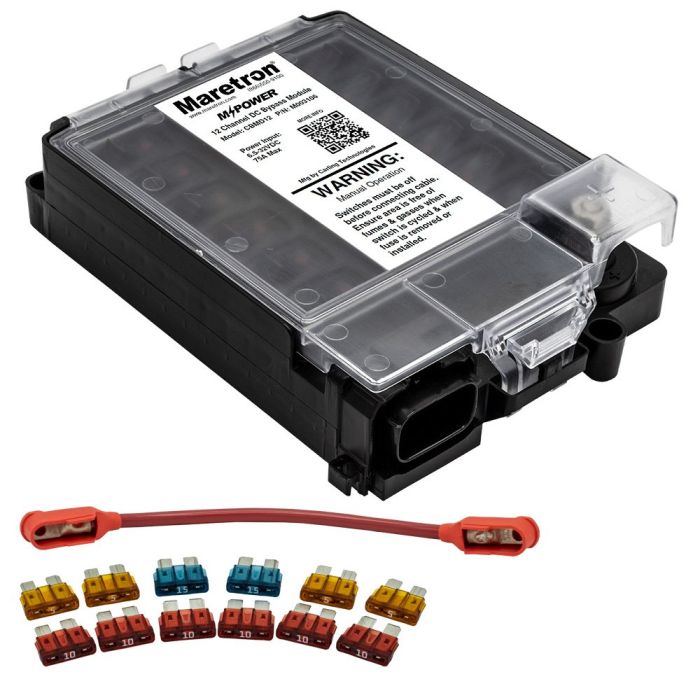

MARETRON 12 CIRCUIT BYPASS MODULE NMEA 12 Circuit Bypass Module NMEA 2K with Fuse Pack & Jumper Wire For manual control of the loads, an optional MPower 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the 12-Channel DC Load Controller Module (CLMD12). The maximum current capacity for the CBMD12 is 75 amps in 12V DC and 24V DC power systems. The Bypass Module provides a manual method (ON/OFF switch) to control loads by providing power to each load in case of a CLMD12 malfunction or a NMEA 2000 network failure. The CBMD12 utilizes standard fuses for overcurrent protection and 12 Carling Curvette Rocker Switches for manual control of each load. With the use of the Curvette rocker switches, there is no arcing that occurs while manually overriding a load. Furthermore, unlike other digital switching products, MPower does not require moving a fuse, which can cause electrical connections to degrade or the possibility of ignition. Its important to ensure that the current
