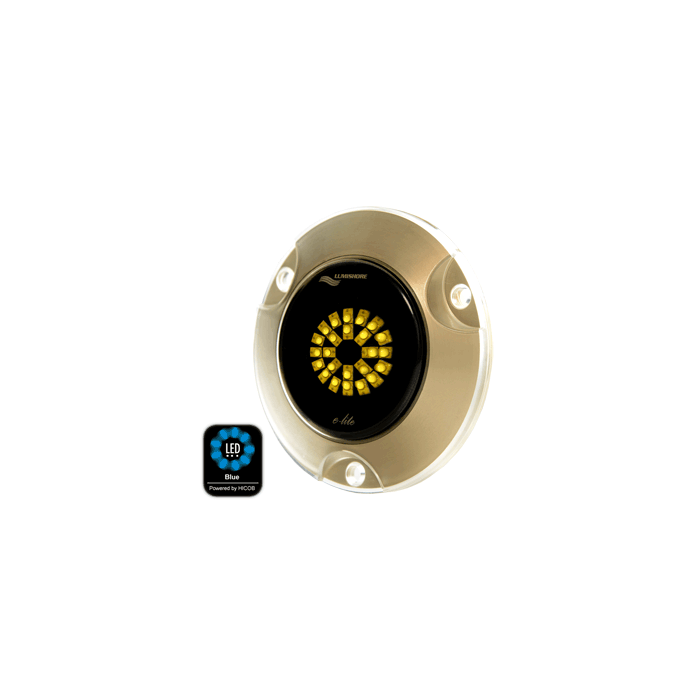

Lumishore SMX101 Surface Mount Light - 3,200 Fixture Lumens - 90Deg. - Blue

Lumishore SMX101 Surface Mount Light - 3,200 Fixture Lumens - 90° - Blue

Lumishore's SMX101 takes all the incredible features of the previous model
SMX100 and boost the light output with no increases in power consumption!
This means increased light throw providing an even deeper light penetration
into the water. Plus, the e-lite models have a 90° beam providing an
even glow of light around the hull.

Features:

• Brightest, most efficient, compact LED surface mount lights
  available

• 90° light beam make the hull glow

• Corrosion Proof Polymer Design - Chemically resistant to marine growth,
  no bonding, no painting

• Low Profile and Compact - Transom or side mounting

• Easy Installation - Intergrated electronics (no external driver) and
  small hole size requirement

Specifications:

• Fixture Lumens: 3,200

• Color: Blue

• Beam Angle: 90°

• LED Power-HICOB Array: Yes

• Typical LED Life: 50,000+ hours

• Voltage: 12 or 24 VDC

• Max. Current Draw 12/24 VDC: 3A/1.5A

• Bonding/Painting Requirement: No

• Low Voltage & Temp. Warning: Yes

• Voltage & Thermal Protection: Yes

• 'Soft Start' Protection: Yes

• Reverse Polarity Protection: Yes

• Light Face Diameter: 4.5"/114.3mm

• Profile (height) of Housing: 0.67"/16.8mm

• Cable Hole Cut Out: 0.375"/9.5mm

• Cable Length: 6.5'/2m

• Driver: Internal Driver

Category: Boat Outfitting | Underwater Lighting,Electrical | Underwater Lighting

Manufacturer Part Number: 60-0136
