Lowrance SpotlightScan& Sonar

Navico Lowrance SpotlightScan™ Sonar

SpotlightScan™ Sonar delivers a higher level of angler-controlled, surround-scanning views to provide picture-like images of key fishing areas on your HDS Gen2* or HDS Gen2 Touch fishfinder/chartplotter display.

Similar to the way a scanning spotlight reveals objects in the dark, SpotlightScan™ Sonar clearly pinpoints structure and fish targets ahead and around the boat, so anglers save valuable time on the water and maintain focus on the most productive fishing spots - all without disturbing these areas before anglers have a chance to fish them.

Features

• Focusing on the areas you want to fish, SpotlightScan™ Sonar allows you to quickly concentrate on the key fishing areas of greatest interest - without wasting valuable fishing time while waiting for a full 360° scan.

• SpotlightScan™ Sonar features a scanning range of 150', and it operates at optional frequency ranges of 455 or 800 kHz.

• In addition to surround-scanning performance, the SpotlightScan transducer also provides DownScan Imaging™ for picture-like images of fish and structure beneath your boat - as well as award-winning Broadband Sounder™ technology, which is ideal for marking fish arches and tracking lure action.

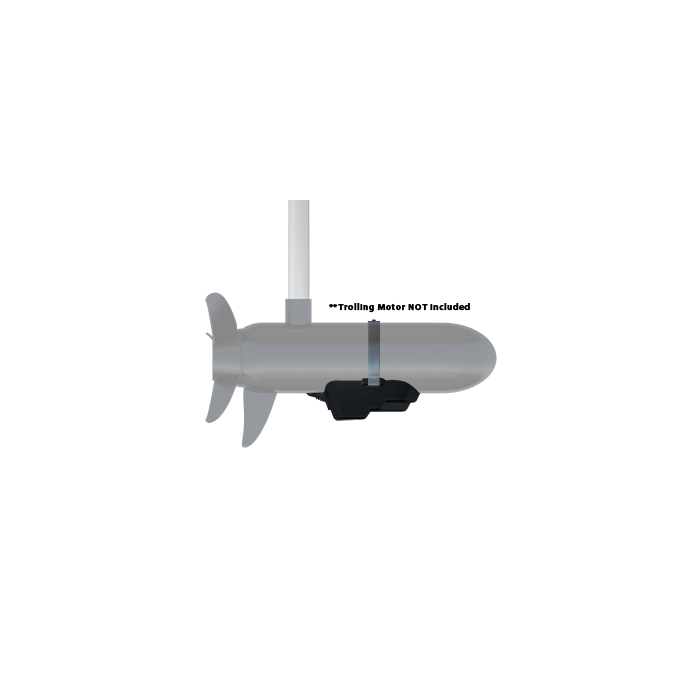

• The SpotlightScan™ transducer can be installed on any bow-mounted, cable-steer, foot-control trolling motor (not electric steer) using a stainless-metal hose clamp (included), so there's no need for special mounting kits. To complete the installation, a SpotlightScan NMEA 2000® sensor is connected to the trolling motor's foot pedal.

• With this installation, the angler has complete control - simply by using the remote foot pedal - of the SpotlightScan™ sonar direction and scanning speed - all without having to make additional menu adjustments on the HDS Gen2 display.

• Supported by Lowrance Advantage Service program.

• NMEA 2000r Starter Kit (part number 000-0124-69) required for installation.

• *HDS Gen2 (non Touch) models require SonarHub™ Sounder Module for SpotlightScan™ Sonar operation.

Beam Width = NONE | Cable Length (Feet) = NONE | Fairing Block Included = NONE | Frequency = 455/800 | Load Equivalence # (LEN) = NONE | Mounting Style = Trolling Motor | Pins = NONE | Speed Included = No | Temperature = NONE

Category: Marine Navigation & Equipment | Transducers

Manufacturer Part Number: 000-11303-001
