Lowrance Elite-5x HDI 83/200 455/200 Fishfinder - Transom Mount 000-11143-001
$399.00
Out of stock
SKU
JMS209413

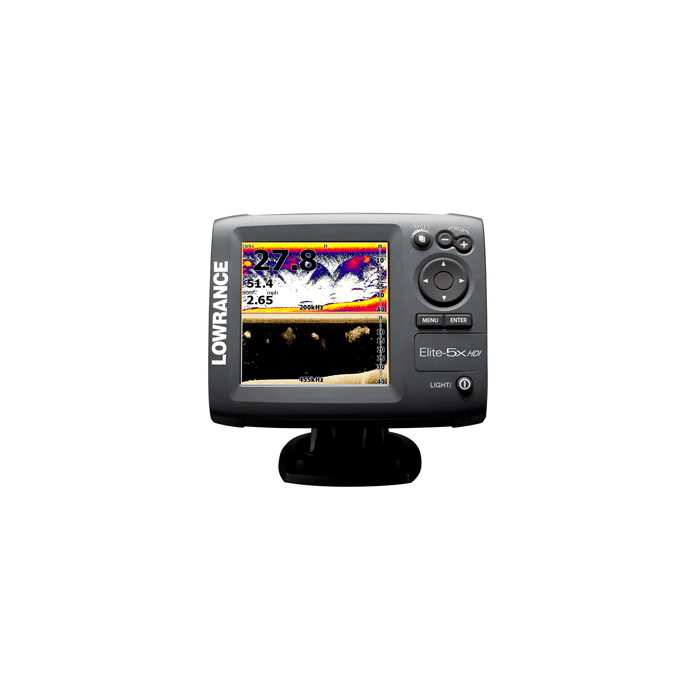

Lowrance Elite-5x HDI 83/200 455/200 Fishfinder - Transom Mount
Elite-5x HDI Fishfinder
5" fishfinder now with Hybrid Dual Imaging™ that combines Broadband Sounder™ with DownScan Imaging™ technology.
Key Features:
Specifications:
Overview
Display
Sonar
Max Depth Per Transducer Type
Technical/Environmental
Power
Power Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)
Networking Connectors
NMEA Output: NMEA 0183
Other
5" fishfinder now with Hybrid Dual Imaging™ that combines Broadband Sounder™ with DownScan Imaging™ technology.
Key Features:
- Lowrance-exclusive, high-resolution, 5-inch color display
- Hybrid Dual Imaging™ (HDI) - Broadband Sounder plus exclusive DownScan Imaging™ -- the power of two award-winning technologies combined to provide the best possible view beneath your boat
- DownScan Overlay™ technology overlays DownScan Imaging onto Broadband Sounder
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint
- Page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view - while still viewing live sonar
- Supported by Lowrance Advantage Service program
Specifications:
Overview
- Display: 5"/12.7cm Full VGA SolarMAX™ PLUS Color
- Resolution: 256-color TFT 480 x 480
- Backlighting: Fluorescent cold cathode
- Power Output: RMS (PTP): Max 250W RMS, 30,000W Peak to Peak (analog equivalent)
- Languages: 30
- HDI Operating Frequencies: (83/200 kHz) + 455/800 kHz
- Operating Voltage: 12 vDC (10-17 vDC min-max)
- Media Port: One (1) microSD slot
- Warranty: One year
Display
- Display Resolution: 480 x 480
- Display Type: 256-color SolarMAX™ PLUS TFT
- Display: Backlighting: Fluorescent cold-cathode
- Backlighting Levels: Adjustable Screen And Keypad
- Display Size: 5"/ 127mm
Sonar
- Depth Alarm: Yes
- Sonar Frequencies: (83/200 kHz) + 455/800 kHz
- Shallow Alarm: Yes
- Temperature Readings: Yes
- Transducer Type: Multiple selections Lowrance and Airmar®
Max Depth Per Transducer Type
- DownScan Imaging™: Max 300'/ 91M @ 455/800 KHz
- Broadband Sounder™: Max 1000' / 305M @ 83/200 kHz
Technical/Environmental
- Waterproof Standard/Rating: IPx7
- Product Width: 6.9" \ 174mm
- Product Depth: 2.5" \ 63mm
- Product Height: 5.4" \ 136mm
Power
Power Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)
Networking Connectors
NMEA Output: NMEA 0183
Other
- Languages: 30
- Output Power [kW]:12 W (0.9 A @ 13 vDC)
- Memory Card Capable: No
| UPC Code | 9420024124741 |
|---|---|
| Manufacturer Part Number | 000-11143-001 |
| Manufacturer | Lowrance |
