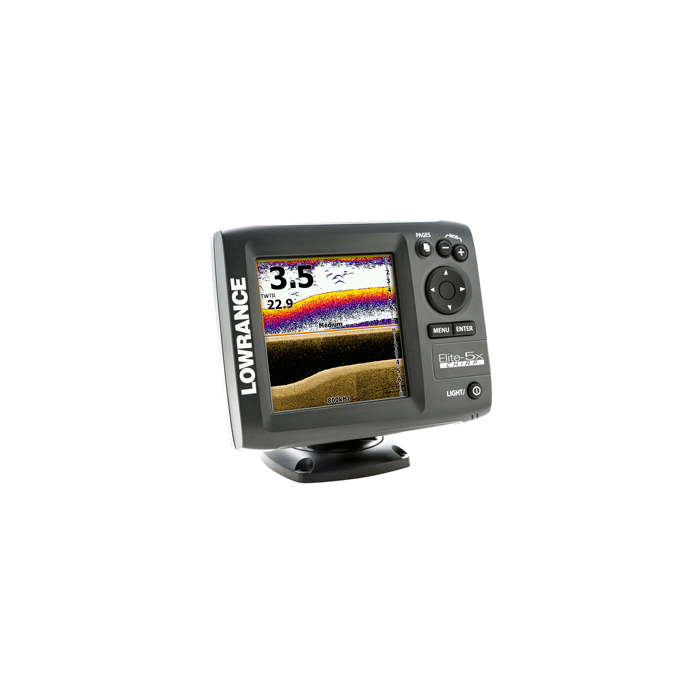

Lowrance Elite-5x CHIRP Fishfinder - 50/200 + 455/800 Transom Mount 000-11656-001

Lowrance Elite-5x CHIRP Fishfinder - 50/200 + 455/800 Transom Mount

Elite-5x CHIRP

Feature-Packed Fishfinder-Only Models Include CHIRP Sonar Plus DownScan Imaging™ For The Best Possible View Beneath Your Boat

The next-generation of Elite fishfinders, the Elite-5x CHIRP series, set the standard for cutting-edge performance and easy-to-use fishfinding. The series adds CHIRP sonar to its award-winning, built-in Broadband Sounder™ and DownScan Imaging™ fishfinder technologies. CHIRP sonar produces greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see baitfish and game fish targets.

CHIRP Sonar Advantages

• Easier to identify and distinguish bait and game fish targets

• Better target identification at greater depths

• Mark fish clearly at faster boat speeds

Exclusive Elite CHIRP Advantages

• Multiple CHIRP frequencies from a single transducer

• CHIRP sonar performance with a greater number of affordable transducers, including the Lowrance HDI Skimmer

Elite Fishfinder Features

• DownScan Imaging™ provides picture-like images of fish-holding structure beneath the boat

• Selectable single-frequency sonar operation with award-winning Broadband Sounder™ performance

• Brilliant Elite color display for enhanced widescreen visibility and viewing detail in all conditions

• DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar or BroadBand Sounder

• Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly

• TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint

• Updated Page selector menu with quick access to all features using one-thumb operation

• Multi-Window Display lets you quickly choose from pre-set page layouts -- including a three panel view with chart, CHIRP sonar ranges and DownScan Imaging

• Supported by Lowrance Advantage Service program

• Maximum Depth Per Sonar Operation

-DownScan Imaging. at 455 kHz: 300' / 91M
-CHIRP Sonar High Range/200 kHz: 1,000' / 305M
-CHIRP Sonar Med Range/83 kHz: 1000' / 305M
-CHIRP Sonar Low Range/50 kHz: 3,000'/914M

Frequency = 50/200 + 455/800 | Included Transducer = Yes | Resolution (VxH) = 480 x 480 | Screen Size = 5" | Speed/Temp = Temp Only | Transducer Type = Transom Mount | Waterproof Rating = Waterproof | Watts RMS - Max = 250w
