Lowrance Elite-5 HDI 83/200 455/800 COmbo Unit - Transom Mount 000-11145-001
$499.00
Out of stock
SKU
JMS209406
Lowrance Elite-5 HDI 83/200 455/800 COmbo Unit - Transom Mount

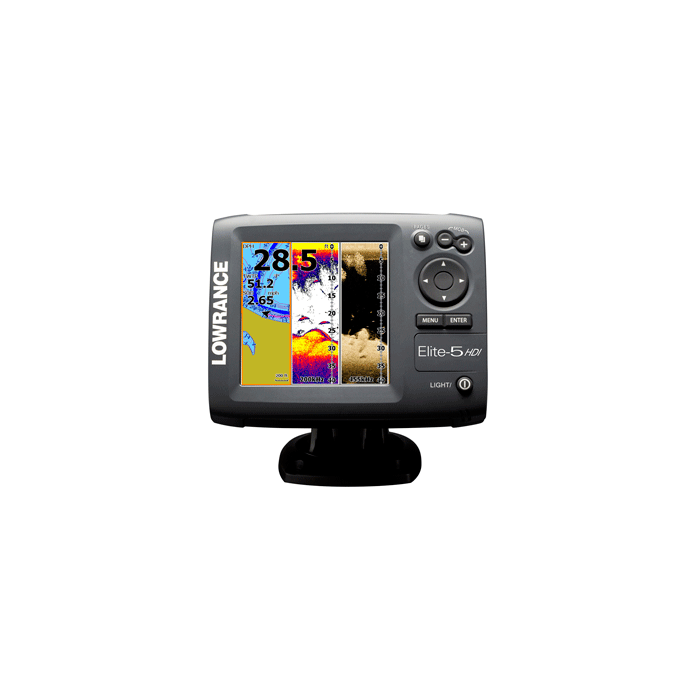

Elite-5 HDI Fishfinder/Chartplotter
5" fishfinder/chartplotter now with Hybrid Dual Imaging™ that combines Broadband Sounder™ with DownScan Imaging™ technology, built-in GPS antenna and high-definition mapping.
Key Features:
Specifications:
Overview
Display
Sonar
5" fishfinder/chartplotter now with Hybrid Dual Imaging™ that combines Broadband Sounder™ with DownScan Imaging™ technology, built-in GPS antenna and high-definition mapping.
Key Features:
- Lowrance-exclusive, high-resolution, 5" color display
- Hybrid Dual Imaging™ (HDI) - Broadband Sounder plus exclusive DownScan Imaging™ - the power of two award-winning technologies combined to provide the best possible view beneath your boat
- Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000'
- Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO
- Create your own map from real sonar data that you record with Insight Genesis™
- DownScan Overlay™ technology overlays DownScan Imaging onto Broadband Sounder
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint
- New page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly choose from pre-set page layouts -- including a three-panel view with chart, Broadband Sounder and DownScan Imaging
- Supported by Lowrance Advantage Service program
Specifications:
Overview
- Display: 5"/12.7cm Full VGA SolarMAX™ PLUS Color
- Resolution: 256-color TFT 480 x 480
- Backlighting: Fluorescent cold cathode
- Power Output: RMS (PTP): Max 250W RMS, 30,000W Peak to Peak (analog equivalent)
- Languages: 30
- HDI Operating Frequencies: (83/200 kHz) + 455/800 kHz
- Operating Voltage: 12 vDC (10-17 vDC min-max)
- Media Port: One (1) microSD slot
- Warranty: One year
Display
- Display Resolution: 480 x 480
- Display Type: 256-color SolarMAX™ PLUS TFT
- Display Backlighting: Fluorescent cold-cathode
- Backlighting Levels: Adjustable Screen And Keypad
- Display Size: 5" / 127mm
Sonar
- Depth Alarm: Yes
- Sonar Frequencies: (83/200 kHz) + 455/800 kHz
- Shallow Alarm: Yes
- Temperature Readings: Yes
- Transducer Type: Multiple selections Lowrance and Airmar®
Max Depth Per Transducer Type- DownScan Imaging™: Max 300' / 91M @ 455/800 KHz
- Broadband Sounder™: Max 1000' / 305M @ 83/200 kHz
Technical/Environmental- Waterproof Standard/Rating: IPx7
- Product Width: 6.9" \ 174mm
- Product Depth: 2.5" \ 63mm
- Product Height: 5.4" \ 136mm
Power
Power Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)
GPS Navigation- Navigation: Routes: 100
- Navigation: Waypoint Storage: 3,000
- GPS Antenna Type: Internal high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)
- Plot Trails: Up to 100 trails - up to 10,000 points / trail
- GPS Alarms: Yes
- Background Mapping: World reference basemap or (U.S. models) over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000' /305M
- Mapping Options: Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO
Networking Connectors
NMEA Output: NMEA 0183
Other- Languages: 30
- Output Power [kW]:12 W (0.9 A @ 13 vDC)
- Memory Card Capable: Yes
- Languages: 30
- DownScan Imaging™: Max 300' / 91M @ 455/800 KHz
| UPC Code | 9420024124765 |
|---|---|
| Manufacturer Part Number | 000-11145-001 |
| Manufacturer | Lowrance |
