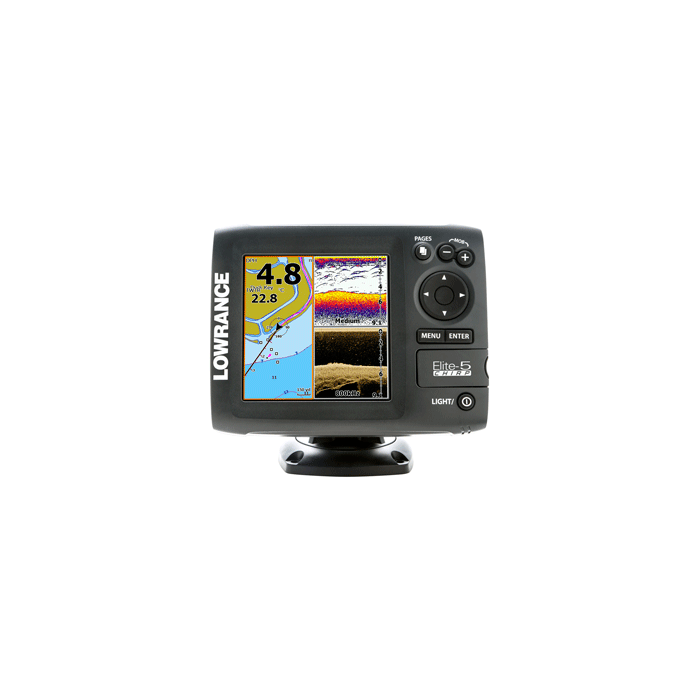

Lowrance ELite-5 CHIRP Fishfinder/Chartplotter Combo - No Transducer 000-11650-001

Lowrance ELite-5 CHIRP Fishfinder/Chartplotter Combo - No Transducer

Elite-5 CHIRP

Feature-Packed Fishfinder/Chartplotter Models Include CHIRP Sonar Plus DownScan Imaging™ For The Best Possible View Beneath Your Boat

The next-generation of Elite fishfinder/chartplotters, the Elite-5 CHIRP series, set the standard for cutting-edge performance and easy-to-use fishfinding. The series adds CHIRP sonar to its award-winning, built-in Broadband Sounder™ and DownScan Imaging™ fishfinder technologies. CHIRP sonar produces greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see baitfish and game fish targets.

CHIRP Sonar Advantages

• Easier to identify and distinguish bait and game fish targets

• Better target identification at greater depths

• Mark fish clearly at faster boat speeds

Exclusive Elite CHIRP Advantages

• Multiple CHIRP frequencies from a single transducer

• CHIRP sonar performance with a greater number of affordable transducers, including the Lowrance HDI Skimmer

Elite Fishfinder/Chartplotter Features

• DownScan Imaging™ provides picture-like images of fish-holding structure beneath the boat

• Selectable single-frequency sonar operation with award-winning Broadband Sounder™ performance

• Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000 feet

• Optional chart upgrades,using the microSD card slot, include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N

• Create your own map from real sonar data that you record with Insight Genesis™

• Brilliant Elite color display for enhanced widescreen visibility and viewing detail in all conditions

• DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar or BroadBand Sounder

• Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly

• TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint

• Updated page selector menu with quick access to all features using one-thumb operation

• Multi-Window Display lets you quickly choose from pre-set page layouts - including a three panel view with chart, CHIRP sonar ranges and DownScan Imaging

• Supported by Lowrance Advantage Service program

• Maximum Depth Per Sonar Operation

-DownScan Imaging. at 455 kHz: 300' / 91M
-CHIRP Sonar High Range/200 kHz: 1,000' / 305M
-CHIRP Sonar Med Range/83 kHz: 1000' / 305M
-CHIRP Sonar Low Range/50 kHz: 3,000'/914M



Basemap = Yes | Card Format = Micro SD | Cartography - Preloaded = No | Cartography Brand = Navionics | Cartography Type = Gold/HotMaps Premium | Frequency = 83/50/200/455/800 | Included Transducer = No | Internal/External Antenna = Internal | Resolution (VxH) = 480 x 480 | Screen Size = 5" | Screen Type = Color | Speed/Temp = Optional | Touchscreen = No | Transducer Type = Not Included | Waterproof Rating = Waterproof | Watts RMS - Max = NONE | Waypoints/Routes = 3000/100 | Weather Capable = No
