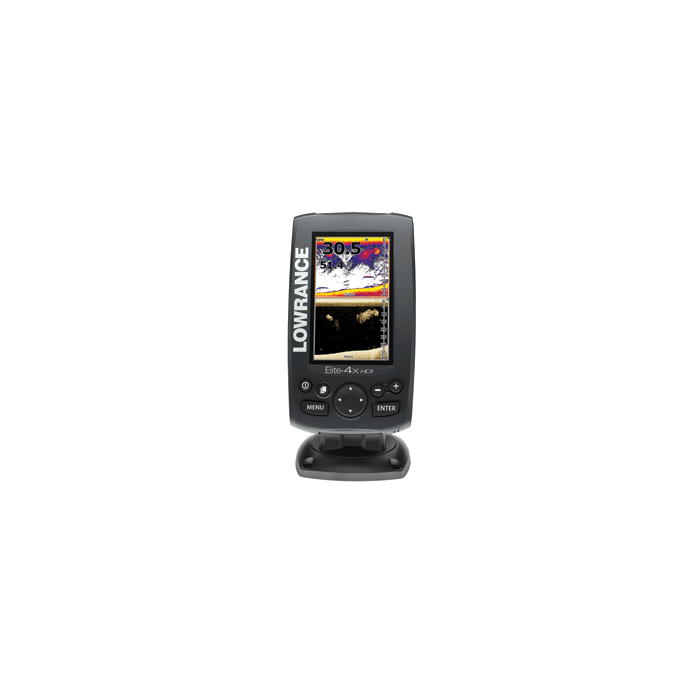

Lowrance Elite-4x HDI Fishfinder no Transducer

Lowrance Elite-4x HDI Fishfinder
Fishfinder

The compact Elite-4x HDI combines a super-bright, LED-backlit color display with a full selection of today's top-selling fishfinder features that are easy to access and operate -- all at a surprisingly affordable price.

Key Features:

• Transducer NOT included

• Lowrance-exclusive, brilliant, high-resolution, 4.3" , LED-backlit color display

• Exclusive Hybrid Dual Imaging™ (HDI) - Broadband Sounder plus DownScan Imaging™ -- the power of two award-winning technologies combined to provide the best possible view beneath your boat

• DownScan Overlay™ technology overlays DownScan Imaging onto Broadband Sounder with appropriate Transducer.

• Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly

• TrackBack™ to review recorded sonar history including structure, transitions or fish targets

• Easy-to-use page selector menu with quick access to all features using one-thumb operation

• Multi-Window Display lets you quickly and easily choose from pre-set page layouts -- including a three-panel view
• Supported by Lowrance Advantage Service program

Specifications:

Overview

• Display Size: 4.3"/10.92cm

• Resolution: 480 x 272

• Display Type: 16-bit color TFT

• Backlighting: 11-Level LED

• Backlighting Levels: Adjustable Screen And Keypad

• Power Output: RMS (PTP): Max 250W RMS, 30,000W Peak to Peak (analog equivalent)

• Languages: 30

• HDI Operating Frequencies: 83/200 kHz + 455/800 kHz

• Operating Voltage: 12 VDC (10-17 VDC min-max)

• Warranty: One year

Sonar

• Depth Alarm: Yes

• Sonar Frequencies: 83/200 kHz or 50/200 kHz

• Shallow Alarm: Yes

• Temperature Readings: Yes

• Transducer Type: Multiple selections Lowrance and Airmar®

• Max Depth Per Transducer Type

• Broadband Sounder™: Max 750' / 229M @ 83/200 kHz

• Broadband Sounder™: Max 2000' / 610M @ 50/200 kHz

• DownScan Imaging™: Max 300' / 91M @ 455/800 kHz

Technical/Environmental

• Waterproof Standard/Rating: IPx7

• Product Width: 3.8" \ 96mm

• Product Depth: 2.2" \ 56mm

• Product Height: 6.6" \ 168mm (7.5" \ 189mm with bracket)

Frequency = 83/200-50/200-455/800 | Included Transducer = No | Resolution (VxH) = 480 x 272 | Screen Size = 4.3" | Speed/Temp = Temp only | Transducer Type = Not Included | Waterproof Rating = Waterproof | Watts RMS - Max = 250W

Category: Marine Navigation & Equipment | Fishfinder/Sounder - Color

Manufacturer Part Number: 000-11296-001
