Lowrance Elite-4x Chirp Fishfinder IceMachine with 83/200 Ice Transducer 000-11822-001

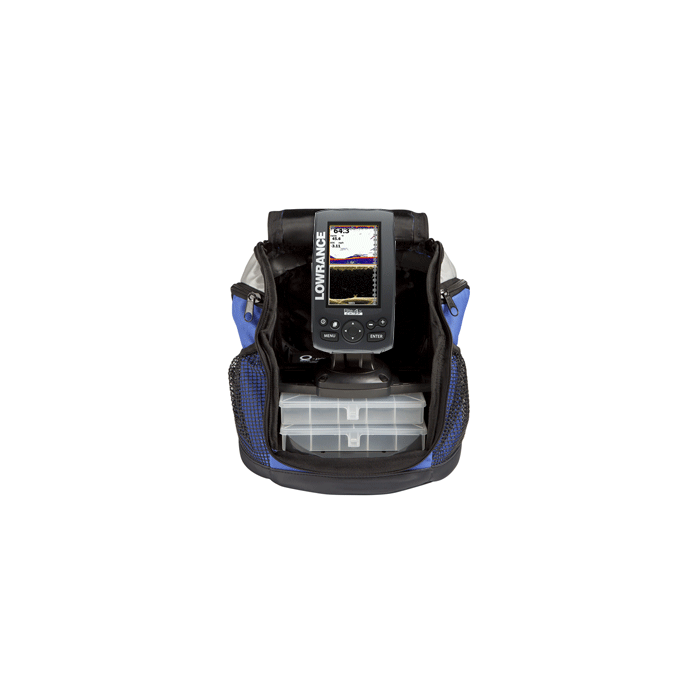

Elite-4x Chirp IceMachine Fishfinder with 83/200 Transducer

The Elite-4x CHIRP IceMachine is a portable color fishfinder featuring CHIRP sonar technology - providing greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see bait fish and game fish targets - as well as special ice mode software and the Lowrance ice-fishing pack and ice transducer.

Features

CHIRP SONAR ADVANTAGES:

• Easier to identify and distinguish bait and game fish targets

• Better target identification at greater depths

• Lowrance-exclusive, brilliant, high-resolution, 4.3" , LED-backlit color display

• CHIRP Sonar for superior target separation, lure detection and a clutter-free display.

• 20° sonar coverage down to 1000'/305M with custom, weighted ice fishing transducer and unique float system (included)

• Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly

• TrackBack™ to review recorded sonar history including structure, transitions or fish targets.

• New easy-to-use page selector menu with quick access to all features using one-thumb operation

• Multi-Window Display lets you quickly and easily choose from pre-set page layouts -- including a three-panel view with chart

• Complete portable PPP-18I Ice Pack kit, with ice transducer & battery included

Ice Machine™ features:

• Weatherproof, soft-sided pack with easy-to-find, front- and rear-zipper access

• Adjustable display platform for easy viewing

• Two StowAway® utility boxes

• 12V battery and charger for a full day of operation

Specifications

Display

• Display Resolution: 480 x 272

• Display Type: 16-bit color TFT

• Display Backlighting: 11-Level LED

• Backlighting Levels: Adjustable Screen And Keypad

• Display Size: 4.3" / 109.22mm

Sonar

• Depth Alarm: Yes

• Output Power: RMS (PTP): Max 250 RMS, 30,000W Peak to Peak (analog equivalent)

• Sonar Frequencies: Low, Med, High (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band)

• Shallow Alarm: Yes

• Temperature Readings: Yes

Max Depth Per Sonar Operation:

• CHIRP Sonar High Range/200 kHz: 1000' / 305M

• CHIRP Sonar Med Range/83 kHz: 1000' / 305M

• CHIRP Sonar Low Range/50 kHz: 3000' / 914M

Technical/Environmental

• Waterproof Standard/Rating: IPx7

• Product Width: 3.8" \ 96mm

• Product Depth: 2.2" \ 56mm

• Product Height: 6.6" \ 168mm (7.5" \ 189mm with bracket)

Power

• Power Supply (Supply Voltage): 12V DC (10-17V DC min-max)

Networking Connectors

• NMEA Output: NMEA 0183

• Power: Blue 10-pin power connector

• Transducer Port: Blue 7-pin connector for CHIRP Sonar, and narrow-band transducer
