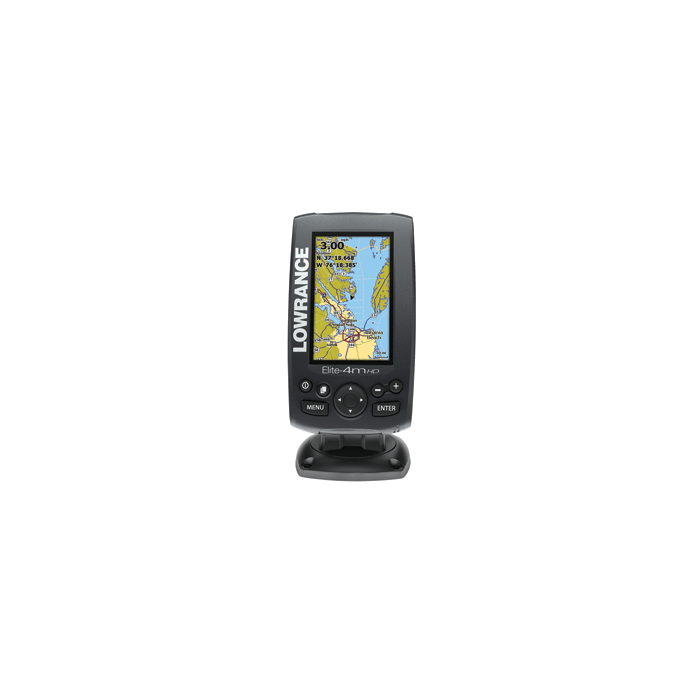

Lowrance Elite-4M HD Chartplotter

Lowrance Elite-4m HD
Chartplotter

The compact Elite-4m HD combines a super-bright, LED-backlit color display and built-in GPS antenna with a full selection of easy-to-use chartplotter features that are easy to access and operate -- all at a surprisingly affordable price.

Key Features:

• Lowrance-exclusive, brilliant, high-resolution, 4.3" , LED-backlit color display

• Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000'

• Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, HotMaps® Premium, Fishing Hotspots® PRO; Gold

• Easy-to-use page selector menu with quick access to all features using one-thumb operation

• Multi-Window Display lets you quickly and easily choose from pre-set page layouts

• Supported by Lowrance Advantage Service program

Specifications:

Overview

• Display Size: 4.3"/10.92cm

• Resolution: 480 x 272

• Display Type: 16-bit color TFT

• Backlighting: 11-Level LED

• Backlighting Levels: Adjustable Screen And Keypad

• Languages: 30

• Operating Voltage: 12 VDC (10-17 VDC min-max)

• Media Port: One (1) high-capacity microSD slot

• Warranty: One year

Technical/Environmental

• Waterproof Standard/Rating: IPx7

• Product Width: 3.8" \ 96mm

• Product Depth: 2.2" \ 56mm

• Product Height: 6.6" \ 168mm (7.5" \ 189mm with bracket)

Power

• Power Supply (Supply Voltage): 12 VDC (10-17 VDC min-max)

• GPS Navigation

• Navigation: Routes: 100

• Navigation: Waypoint Storage: 3,000

• GPS Antenna Type: Internal high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)

• Plot Trails: Up to 100 trails - up to 10,000 points / trail

• GPS Alarms: Yes

• Background Mapping: US Background map with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000' /305M

• Mapping Options: Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO

Amps - Draw = NONE | Basemap = Yes | Card Format = Micro SD | Cartography - Preloaded = No | Cartography Brand = Navionics | Cartography Type = Gold/HotMaps Premium | Internal/External Antenna = Internal | Resolution (VxH) = 480 x 272 | Screen Size = 4.3" | Screen Type = Color | Touchscreen = No | Voltage - Input Range (Volts) = 12V | Waterproof Rating = Waterproof | Waypoints/Routes = 3000/100 | Weather Capable = No

Category: Marine Navigation & Equipment | GPS - Chartplotters

Manufacturer Part Number: 000-11293-001
