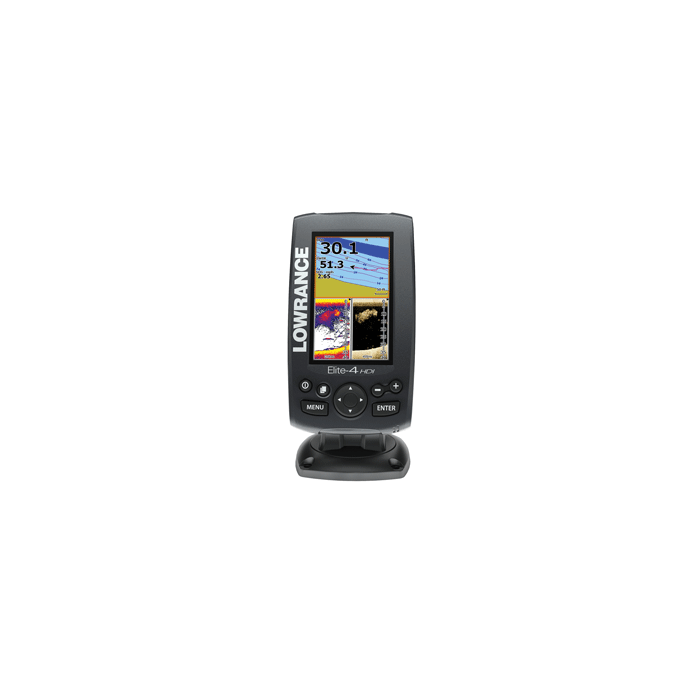

Lowrance Elite-4 HDI Gold Fishfinder/ChartPlotter

Lowrance Elite-4 HDI Gold
Fishfinder/Chartplotter

The easy-to-use 4.3" fishfinder/chartplotter with Hybrid Dual Imaging™ that combines Broadband Sounder™ with DownScan Imaging™ technology, a super-bright, LED-backlit color display, built-in GPS antenna and Navionics® Gold high-definition mapping.

Key Features:

• Does NOT include Transducer

• Lowrance-exclusive, brilliant, high-resolution, 4.3" , LED-backlit color display

• Exclusive Hybrid Dual Imaging™ (HDI) - Broadband Sounder plus DownScan Imaging™ -- the power of two award-winning technologies combined to provide the best possible view beneath your boat with appropriate transducer

• Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000'

• Navionics Gold chartcard featuring U.S./Canada/Alaska and Bahamas coastal, Great Lakes and major Canadian lakes detail

• Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, HotMaps® Premium, Fishing Hotspots® PRO

• Create your own map from real sonar data that you record with Insight Genesis™

• DownScan Overlay™ technology overlays DownScan Imaging onto Broadband Sounder

• Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly

• TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint

• Easy-to-use page selector menu with quick access to all features using one-thumb operation

• Multi-Window Display lets you quickly and easily choose from pre-set page layouts -- including a three-panel view with chart, Broadband Sounder and DownScan Imaging

• Supported by Lowrance Advantage Service program

Specifications:

Overview

• Display Size: 4.3"/10.92cm

• Display Type: 16-bit color TFT

• Resolution: 480 x 272

• Backlighting: 11-Level LED

• Backlighting Levels: Adjustable Screen And Keypad

• Power Output: RMS (PTP): Max 250W RMS, 30,000W Peak to Peak (analog equivalent)

• Languages: 30

• HDI Operating Frequencies: 83/200kHz or 50/200kHz + 455/800kHz

• Operating Voltage: 12VDC (10-17VDC min-max)

• Media Port: One (1) high-capacity microSD slot

• Warranty: One year

Sonar

• Depth Alarm: Yes

• Sonar Frequencies: 83/200kHz or 50/200kHz + 455/800kHz

• Shallow Alarm: Yes

• Temperature Readings: Yes

• Transducer Type: Multiple selections Lowrance and Airmar®

• Max Depth Per Transducer Type

• DownScan Imaging™: Max 300' / 91M @ 455/800 KHz

• Broadband Sounder™: Max 750' / 229M @ 83/200 kHz

• Broadband Sounder™: Max 2000' / 610M @ 50/200 kHz

Technical/Environmental

• Waterproof Standard/Rating: IPx7

• Product Width: 3.8" \ 96mm

• Product Depth: 2.2" \ 56mm

• Product Height: 6.6" \ 168mm (7.5" \ 189mm w/bracket)

Power

• Power Supply (Supply Voltage): 12 VDC (10-17 VDC min-max)

GPS Navigation

• Navigation: Routes: 100

• Navigation: Waypoint Storage: 3,000

• GPS Antenna Type: Internal high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)

• Plot Trails: Up to 100 trails - up to 10,000 points / trail

• GPS Alarms: Yes

• Background Mapping: US Background map with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000'/305M

• Mapping Options: Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold (included) and HotMaps® Premium, Fishing Hotspots® PRO

Basemap = Yes | Card Format = Micro SD | Cartography - Preloaded = No | Cartography Brand = Navionics | Cartography Type = Gold/HotMaps Premium | Frequency = 83/200-50/200-455/800 | Included Transducer = No | Internal/External Antenna = Internal | Resolution (VxH) = 480 x 272 | Screen Size = 4.3' | Screen Type = Color | Speed/Temp = Temp Only | Touchscreen = No | Transducer Type = Not Included | Waterproof Rating = Waterproof | Watts RMS - Max = 250W | Waypoints/Routes = 3000/100 | Weather Capable = No

Category: Marine Navigation & Equipment | GPS - Fishfinder Combos

Manufacturer Part Number: 000-11290-001
