Lowrance Elite-4 CHIRP Fishfinder/Chartplotter Ice Machine with 83/200 khz Ice Transducer 000-11821-001

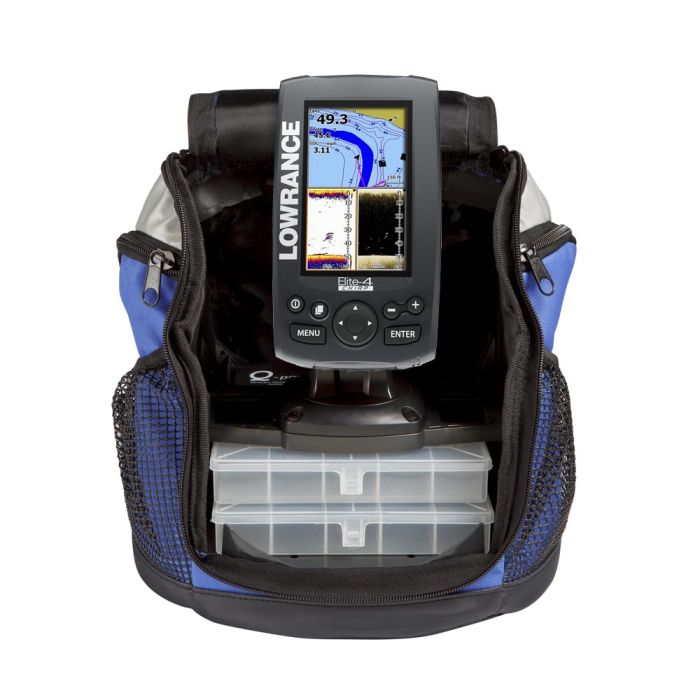

Elite-4 CHIRP IceMachine Fishfinder/Chartplotter

The Elite-4 CHIRP IceMachine is a portable color fishfinder/chartplotter featuring CHIRP sonar technology -providing greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see bait fish and game fish targets - as well as special ice mode software and the Lowrance ice-fishing pack and ice transducer.

Features
CHIRP SONAR ADVANTAGES

• Easier to identify and distinguish bait and game fish targets

• Better target identification at greater depths

• Lowrance-exclusive, brilliant, high-resolution, 4.3" , LED-backlit color display

• CHIRP Sonar for superior target separation, lure detection and a clutter-free display

• Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000 feet.

• Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics+, and HotMaps® Premium, Fishing Hotspots® PRO and Jeppesen C-Map Max-N

• Create your own map from real sonar data that you record with Insight Genesis™

• 20° sonar coverage down to 1000'/305M with custom, weighted ice fishing transducer and unique float system (included)

• Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly

• TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint

• New easy-to-use page selector menu with quick access to all features using one-thumb operation

• Multi-Window Display lets you quickly and easily choose from pre-set page layouts -- including a three-panel view with chart, CHIRP Sonar and DownScan Imaging.

• Complete portable PPP-18I Ice Pack kit, with ice transducer & battery included

IceMachine™ Features

• Weatherproof, soft-sided pack with easy-to-find, front- and rear-zipper access

• Adjustable display platform for easy viewing

• Two StowAway® utility boxes

• 12v battery and charger for a full day of operation


Specifications

• Display Size: 4.3"/10.92cm

• Resolution: 480 x 272

• Display Type: 16-bit color TFT

• Backlighting: 11-Level LED

• Backlighting Levels: Adjustable Screen And Keypad

• Power Output: RMS (PTP): Max 250W RMS, 30,000W Peak to Peak (analog equivalent)

• Languages: 30

• Sonar Frequencies: Low, Med, High (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band)

• Shallow Alarm: Yes

• Temperature Readings: Yes

• Operating Voltage: 12V DC (10-17V DC min-max)

• Media Port: One (1) high-capacity microSD slot

• Waterproof Standard/Rating: IPx7

• Navigation: Routes: 100

• Navigation: Waypoint Storage: 3,000

• GPS Antenna Type: Internal high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)

• Plot Trails: Up to 100 trails - up to 10,000 points per trail

• GPS Alarms: Yes

• Background Mapping: World reference basemap or (U.S. models) over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1000'/305M

• NMEA Output: NMEA 0183

• Power: Blue 10-pin power connector

• Transducer Port: Blue 7-pin connector for CHIRP Sonar, and narrow-band transducer

• Product Width: 3.8" \ 96mm

• Product Depth: 2.2" \ 56mm

• Product Height: 6.6" \ 168mm (7.5' \ 189mm with bracket)

• Warranty: One year
