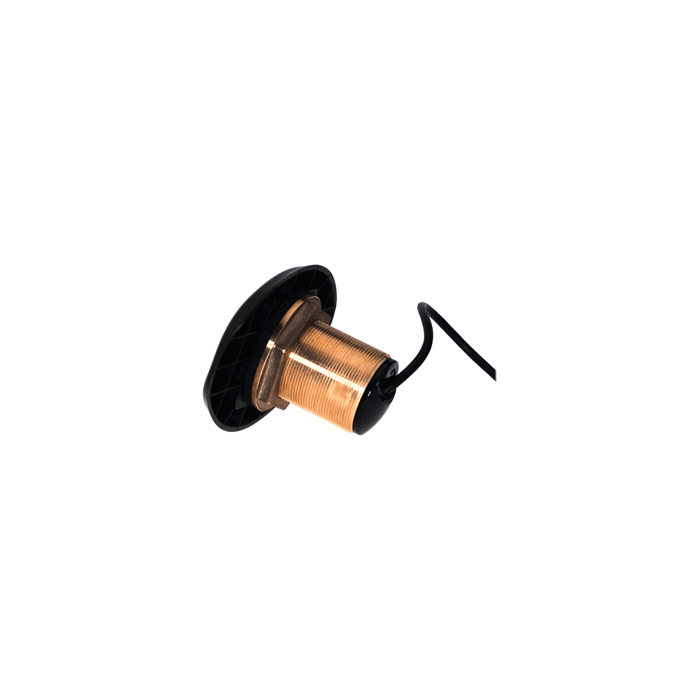

Lowrance Bronze HDI 12 Degree Tilt Transducer 20/200 455/800 000-11134-001
$469.00
Out of stock
SKU
JMS209403
Lowrance Bronze HDI 12° Tilt Transducer 20/200 455/800
Hybrid Dual Imaging™ (HDI) Bronze Thru-Hull Transducer
f/Elite-7 HDI & HDS Gen2 Touch Displays
12° Tilt
Operating Frequency 50kHz
Operating Frequency 200kHz
Operating Frequency 455kHz
Operating Frequency 800kHz
f/Elite-7 HDI & HDS Gen2 Touch Displays
12° Tilt
- Provides Broadband Sounder™ (50/200kHz) and DownScan Imaging™ (455/800kHz)
- Includes Temperature Sensor
- Includes a 33' (10M) cable
Operating Frequency 50kHz
- Max Depth: 3,000'
- Beam(-3dB): 45°
Operating Frequency 200kHz
- Max Depth: 1,000'
- Beam(-3dB):11°
Operating Frequency 455kHz
- Max Depth:300'
- Coverage(-3dB) Fore/Aft:3°
- Coverage (-3dB) Port/Starboard: 55°
Operating Frequency 800kHz
- Max Depth:100'
- Coverage(-3dB) Fore/Aft:1.5°
- Coverage (-3dB) Port/Starboard: 30°
| UPC Code | 9420024124567 |
|---|---|
| Manufacturer Part Number | 000-11134-001 |
| Manufacturer | Lowrance |
