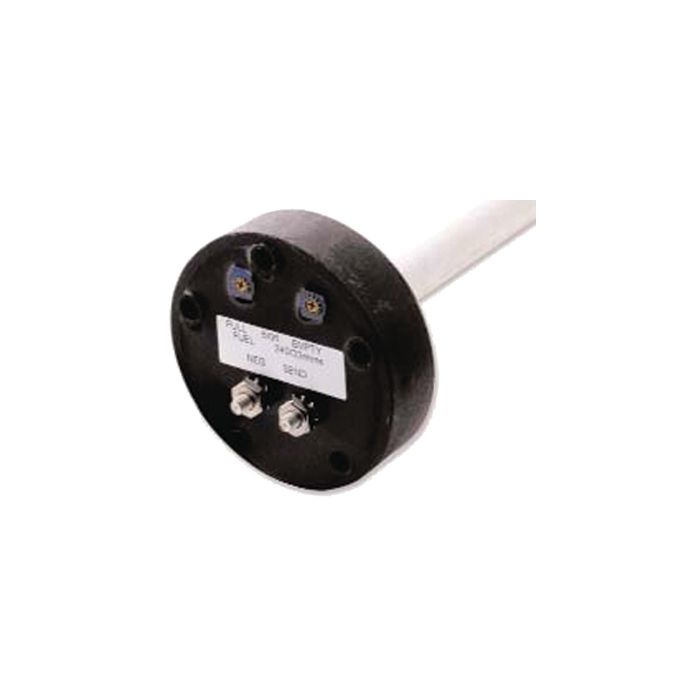

Livorsi Sender Fuel Level 25-36 Tank LIV-GSFLC36
$141.39
Out of stock
SKU
JMS186608
FUEL & WATER LEVEL SENDER
Fuel & Water Level Sender
Provide an accurate, continuous readout of fuel or water levels even in a moving boat. Consisting of a single in-tank probe and an amplifier, it renders the traditional float arm assembly obsolete. The fuel probe itself is constructed of concentric tubing (a small brass or aluminum tube inside a larger aluminum tube) thatÕs placed vertically in the tank. Acting as a capacitor, the inner tube reads how much air is in the tube and changes in value as the fuel level rises or falls. The amplifier converts these values to a signal suitable to drive a standard meter or other display. The capacitor can even detect water in the fuel tank. Easily installed in the standard float arm assembly mounting plate, an SAE standard 5 bolt pattern. The water sensor probe is constructed of a PVC tube with a stainless steel wire along the outside and an insulated wire through itÕs center. The probe comes in 12" increments and can be cut into any length down to the next lower increment. The probe can be built to fit tanks from 4" to 120" deep and is available for standard as well as custom tank installations, a 3 terminal unit requires 12 volts to the sender.
Description 25"-36"
SKU: LIV-GSFLC36
Alternate SKU: 503-GSFLC36
Category: Engine>Sending Units
Provide an accurate, continuous readout of fuel or water levels even in a moving boat. Consisting of a single in-tank probe and an amplifier, it renders the traditional float arm assembly obsolete. The fuel probe itself is constructed of concentric tubing (a small brass or aluminum tube inside a larger aluminum tube) thatÕs placed vertically in the tank. Acting as a capacitor, the inner tube reads how much air is in the tube and changes in value as the fuel level rises or falls. The amplifier converts these values to a signal suitable to drive a standard meter or other display. The capacitor can even detect water in the fuel tank. Easily installed in the standard float arm assembly mounting plate, an SAE standard 5 bolt pattern. The water sensor probe is constructed of a PVC tube with a stainless steel wire along the outside and an insulated wire through itÕs center. The probe comes in 12" increments and can be cut into any length down to the next lower increment. The probe can be built to fit tanks from 4" to 120" deep and is available for standard as well as custom tank installations, a 3 terminal unit requires 12 volts to the sender.
Description 25"-36"
SKU: LIV-GSFLC36
Alternate SKU: 503-GSFLC36
Category: Engine>Sending Units
| Manufacturer Part Number | GSFLC36 |
|---|---|
| Manufacturer | Livorsi |
