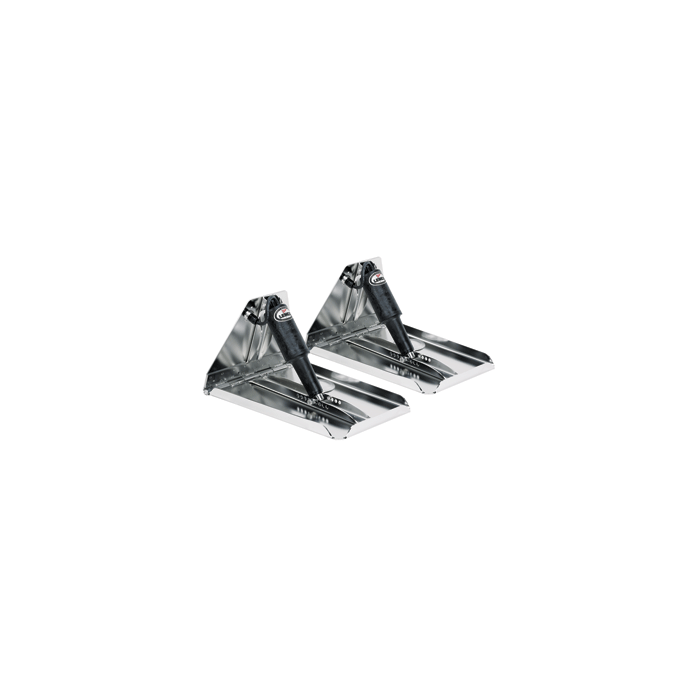

Lenco 24" x 14" Extreme Duty Performance Trim Tab Kit w/o Switch 15047-101

24" x 14" Extreme Duty Performance Trim Tab Kit w/o Switch
Electro-Polished - 10 Gauge Blades / 12-Volt Actuators

Lenco Electric Extreme Duty Polished Blade Trim Tab Kits feature fast response actuators for precise control. They are fully submersible and feature Plug & Play Deutsch connections. Blades are Electro-Polished 10 Gauge - 304 SS with 1" turned up edges, an 85 degree inside taper and 3/8" diameter hinge pin. Extreme Duty actuators with 3/8" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes.

Sugessted Boat Length:25'-50'
L" x W":24" x 14"
Minimum Transom Height:10.5"

Kit Contents

• 2 each of stainless steel trim tab planes

• 2 or 4 each of #15056-001XD extreme duty actuators with 6" lead & Deutsch plugs

• Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes

The following to be supplied by customer:

• Boat mounting hardware

• Actuator extension harnesses (2 for single actuator application or 4 for dual)will be required. Order the lengths of your choice

Specifications:

• System Type: Single Actuator

• Blades: 10 Gauge Stainless Steel

• Finish: Electro Polished

• Switch Kit: Sold Separately

• Class: Fuel Efficient

• Compliance: CE Certified

• Compatibility: Any Boat
