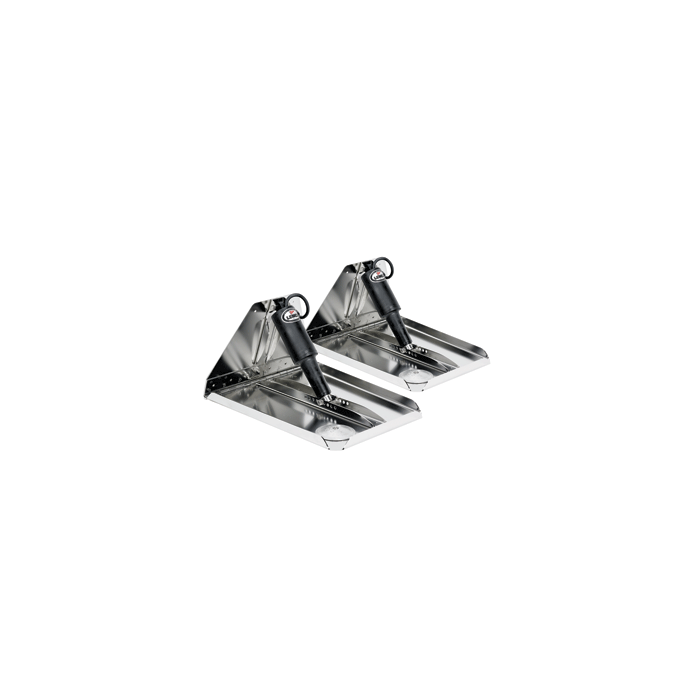

Lenco 14" x 12" Heavy Duty Performance Trim Tab Kit w/o Switch 15042-101

14" x 12" Heavy Duty Performance Trim Tab Kit w/o Switch
Electro-Polished - 12 Gauge Blades / 12-Volt Actuators

Lenco Electric Heavy Duty Polished Blade Trim Tab Kits are supplied with electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges, 85 degree inside taper and 1/4" diameter hinge pin. Kits equipped with Extreme Duty actuators with 5/16" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes.

Sugessted Boat Length:19'-36'
L" x W":14" x 12"
Minimum Transom Height:10.5"

Kit Contents

• 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
• 2 each of #15055-001 XD extreme duty actuators with 6' lead and Deutsch plugs

• 2 each of #30133-103 20' actuator extension wiring harnesses

• 1 each of the Lenco owner's / installation manual
• Boat-mounting hardware supplied by customer

Specifications:

• System Type: Single Actuator

• Blades: 12 Gauge Stainless Steel

• Finish: Electro Polished

• Switch Kit: Sold Separately

• Class: Fuel Efficient

• Compliance: CE Certified

• Compatibility: Any Boat
