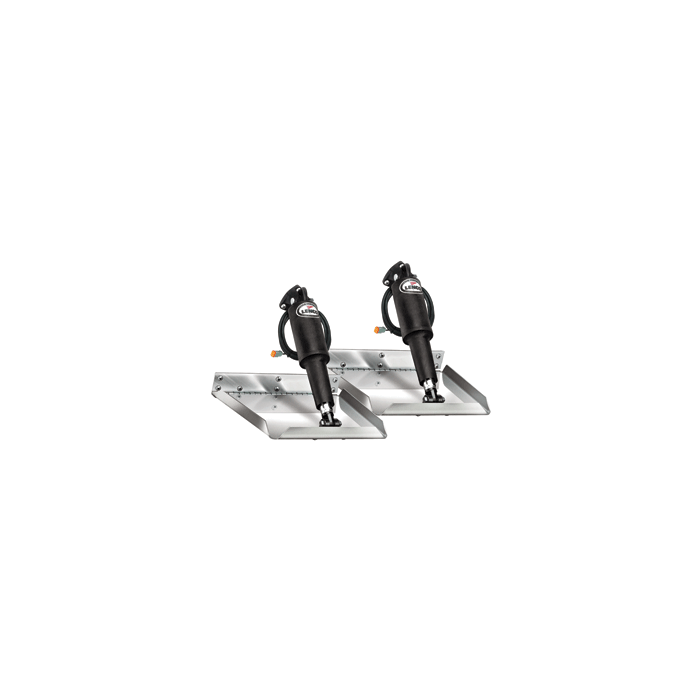

Lenco 12" x 9" Electro-Polished Edge Mount Trim Tab Kit 15115-101

12" x 9" Electro-Polished Edge Mount Trim Tab Kit
12 Volt

Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Electro-Polished blades are constructed of 12-gauge 304 stainless steel with 1" turned up edges and an 85x inside taper and 1/8" diameter stainless steel hinge pin. The actuators mount at the trailing edge of the blades, requiring 1/2" less transom height than the standard mount tabs.

Kits include:

• (2) 12-gauge stainless steel Electro-Polished blades

• (2) 15054-001 actuator with 6' leads and Deutsch connectors

• (2) 30133-103 20' actuator extension wiring harnesses

• (2) 15085-001 upper mounting brackets with gland seal

• (2) 50014-001 lower mounting brackets

• Lenco owner's/installation manual

• Stainless steel mounting hardware

Specifications:

• Boat Length:14' - 18'

• L" x W":12" x 9"

• Hinge Height:2"

• Minimun Transom Height:11"
