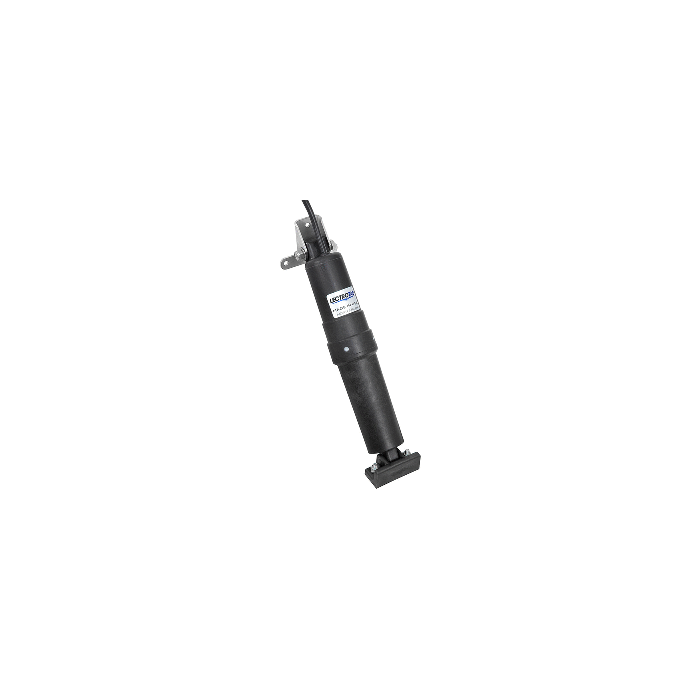

LECTROTAB HEAVY DUTY 12V ACTUATOR 23' CABLE LENGTH A-BK-26

12 V Heavy Duty Tab Actuator - 6' Cable for Everglades Boats

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy duty trim tab actuator.  The heavy duty actuator features a reinforced upper mounting boss and a 12 gauge stainless steel upper bracket.  Lectrotab heavy duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.

The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.  Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates a standard or low profile transom mounting bracket.

Compatible With:

• Everglades Boats

Features:

• Stainless Steel upper mounting bracket
• Reinforced actuator upper mounting boss
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 6' (1.8 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Connectors - Deutsch style

*Sold as an Individual
