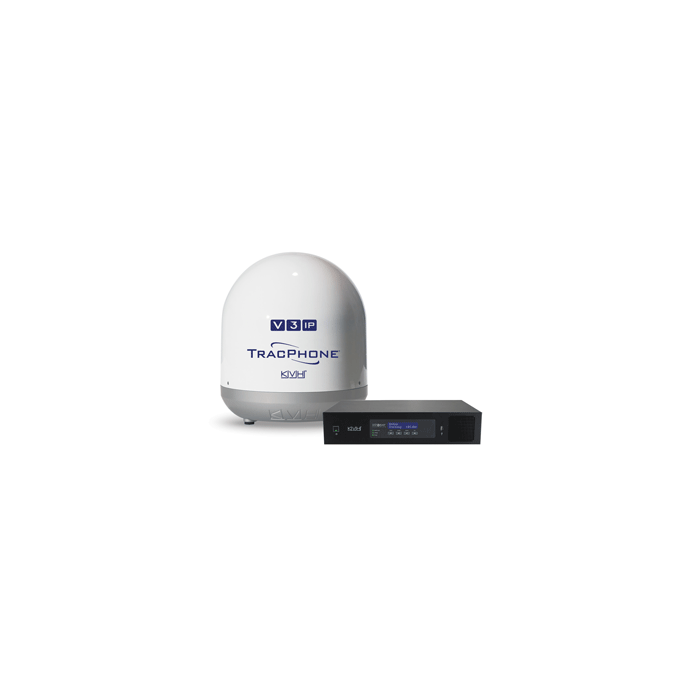

KVH TracPhone V3IP w/mini-VSAT Broadband Service 01-0335-11

TracPhone V3IP with mini-VSAT Broadband Service

Small Antenna, Big Performance

The ultra-compact TracPhone V3IP provides always-on broadband data connections, an integrated voice line, worldwide coverage from the mini-VSAT Broadband network, and dramatically reduced airtime costs.

All VIP-Series products include KVH's Integrated CommBox Modem with IP-enabled antenna control unit, CommBox™ Network Manager, ArcLight® spread spectrum modem, Voice over IP, Ethernet switch and Wi-Fi capabilities. Systems also features a browser-based user interface and convenient iPhone® app for system status, updates and support.

Features:

• Ultra-high efficiency antenna using KVH's RingFire™ design and groundbreaking dielectric rod feed ensures excellent Ku-band reception even in bad weather

• Advanced antenna controller for high-speed tracking

• Dynamic, gyro-stabilized system seeks the optimum satellite within
  the mini-VSAT Broadband network and tracks it through the full dynamic motion experienced by commercial vessels

• Integrated CommBox Modem (ICM)

• 95% smaller in volume than standard TDMA VSAT antennas

• World's smallest maritime VSAT

• Easier and less expensive to install

• Full in-motion tracking for turnkey broadband connections whether on the move or parked

• Rugged, high-performance design tested under vibration and high.low temperature extremes

• Superior, gyro-stabilized tracking and rugged COTS construction for outstanding performance

Specifications:

• Network: mini-VSAT Broadband

• Antenna Type: Ku-band

• Service Coverage Area: Seamless Worldwide Regions

• Antenna Dish Diameter: 14.5" (36.8 cm)

• Antenna Unit Power: DC; provided by ICM
