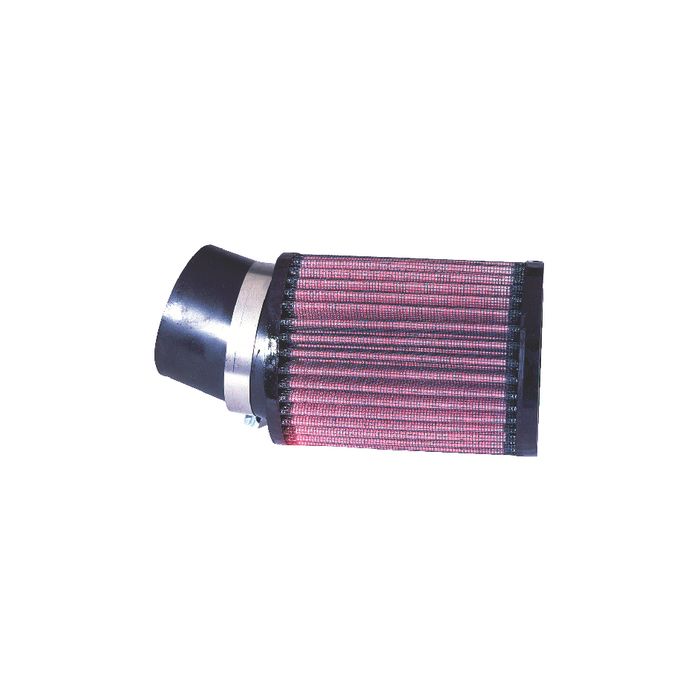

K & N Engineeriing K&N Air Filter KNE RU1460

K & N Engineeriing K&N Air Filter KNE RU1460

All filters are constructed with ultra-strong molded pliable rubber flanges which absorb vibration, allow for secure attachment, and can also be stretched up to 1/16" (1.5mm) to fit in-between sizes. Note: All filters come with Rubber End TANK CAP unless noted.

• Mounting Flange Inside Diameter - This is the most critical dimension and should be very close to the diameter of the application's inlet flange. The flange will stretch up to 1/16" for those in-between sizes


• Filter Diameter - This is the overall diameter of the filter. Always use the largest diameter practical to insure maximum filtration


• Filter Length - This dimension is the length of the filter body only, it does not include the flange length. Always use the longest filter practical for maximum filtration


• Flange Angle and/or Length - If no angle is listed in the specification table, the flange is straight. Any angle listed is in degrees and can be utilized when space is a problem


• Flange Type - The location of the flange in relation to the OD of the filter is sometimes offset to one edge of the filter for more clearance in an application

Flange: 2.75"(70mm) ID x 1"(25mm) L
Filter: 4"(102mm) OD x 5"(127 mm) L
Angle: 10°

SKU: KNE RU1460 501-RU1460
Manufacturer: K & N ENGINEERIING
Category: Snow Carburetion & Fuel/Air Filters
