Iris 7" TFT Waterproof Screen w/Quad Switcher - 4 Composite Inputs IMMONQ7

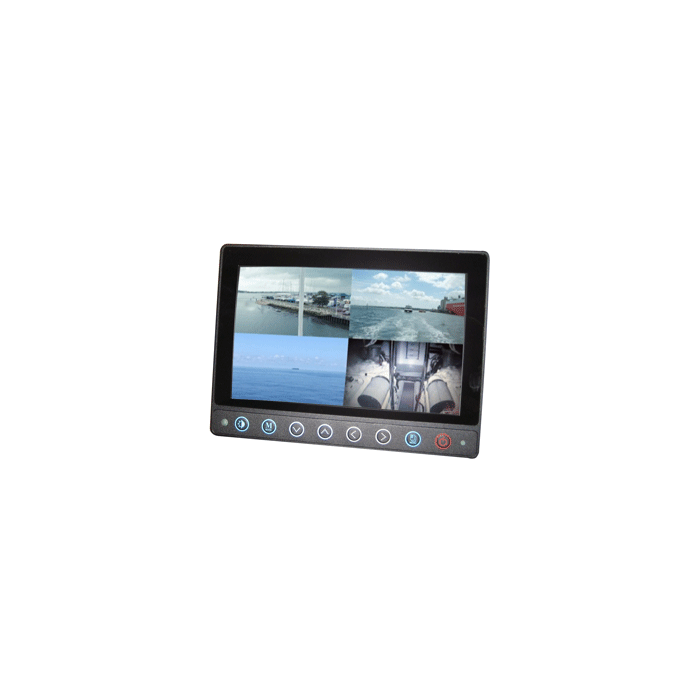

7" Waterproof Quad Monitor
IM-MON-Q7

An addition to our range of on board and vehicle monitors, the IM-MON-Q7 combines a high resolution, low reflection 7" monitor with a Video Quad Switcher in an extremely rugged machined aluminum housing that can be panel or bracket mounted. An IP67 Waterproof rating means the unit can be installed anywhere on board, inside or out.

Up to 4 cameras can be connected making it a perfect docking camera viewing tool. The screen can them be switched to show individual camera inputs, split screen or all four camera inputs at once in a quad configuration. The built in features menu also allows users to flip the image to give a true representation of aft facing back-up cameras.

Features Include:

• PAL / NTSC Switchable Viewing System

• IP67 Ingress Rating

• 4 Composite Video Inputs

• Full, 2 Screen Split, 3 Screen Split, 4 Screen Quad Views

• On Screen Menu System for Easy and Concise Set-Up

• User Configurable Mirror Function for each input / Screen Segment

Reverse Image = NONE | Waterproof Rating = Waterproof

Category: Marine Navigation & Equipment | Cameras - Network Video
