Iris Barracuda-Lite 730 Thru-Hull High-Resolution 800TVL Analog Camera IRIS730

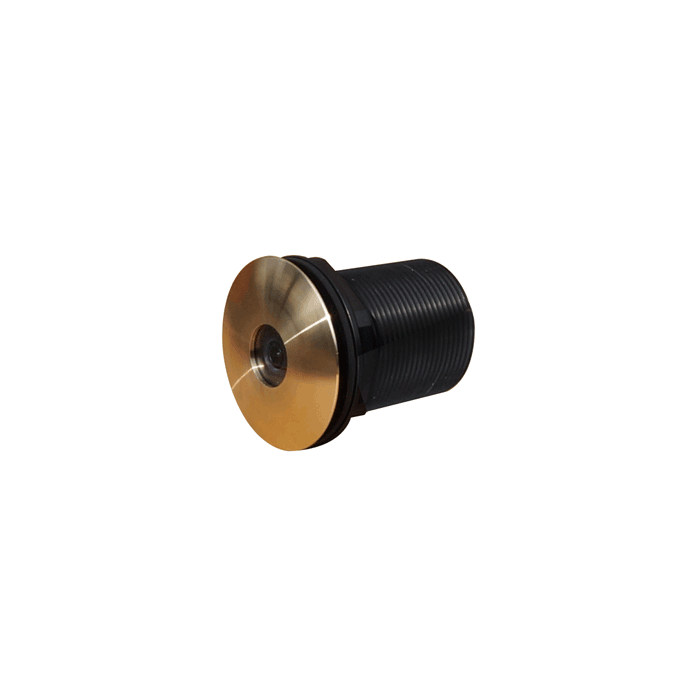

Barracuda-Lite 730 Thru-Hull High-Resolution 800TVL Analog Camera

Features a high-resolution 800TVL Sony Effio-P Color/Mono Camera module with composite video output.

For viewing on all chartplotters with composite video input, TV's with AV input or for interfacing into a PC via a video capure device, the Barracuda-Lite camera features an extremely high resolution analog camera with SONY EFFIO-P chipset, 800TVL resolution, WDR (Wide Dynamic Range) and DNR (Digital Noise Reduction) processing. As with all Barracuda models, the LITE is built into a solid anodised aluminum body complete with a highly resilient aluminum bronze bezel and strengthened acrylic lens cover. Connection to the LITE is via a single CAT5 cable for power and video.

Features:

• Aluminium Bronze Bezel

• Hard Anodised Aluminum Housing

• IP68 Waterproof RJ45 Connection

• Dimensions: 118 mm Bezel. Shaft: 128mm. Shaft Diameter (Hole Cutout): 90mm (3.54")

• Weight: 1.7Kg

• Image Sensor: 1/3" Sony Super HADII (960H)

• Lens: 3.6mm Megapixel Lens

• Power:12VDC via VPD Balun (Supplied) 1.2W

• Video: Composite Video 1VP~P / NTSC or PAL

• Lite Model Resolution: 800TVL (30fps)

• Total Pixels: 1020 x 596 = 607,920
