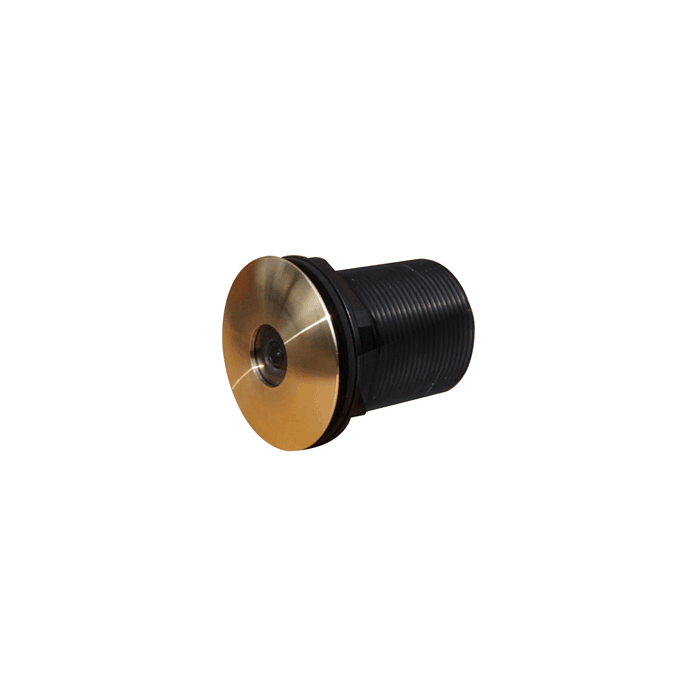

Iris Barracuda-HD 720 Thru-Hull Broadcast Resolution Hi-Def HD-SDI Camera IRIS720

Iris Barracuda-HD 720 Thru-Hull Broadcast Resolution Hi-Def HD-SDI Camera

Features a High-Definition 1080P HD-SDI Camera Module with Digital Output for viewing on Hi-Def displays.

At the heart of the Barracuda-HD is a high definition HD-SDI module which delivers sharp, real-time 1080P HD video for playback on compatible chartplotters or High-Def TV's and displays via an HDMI or HD-SDI input.

Barracuda-HD outputs over 2 million pixels per frame and therefore provides a much higher resolution output than standard analog CCTV cameras. In addition, Barracuda HD also supports D-WDR and 3D-DNR processing guaranteeing trully exceptional High Definition video. Power and Video connection to the camera is via a single 75Ω Coaxial Cable.

Features:

• Aluminium Bronze Bezel

• Hard Anodised Aluminum Housing

• IP68 Waterproof 75Ω BNC Connection

• Dimensions: 118mm Bezel. Shaft: 128mm. Shaft Diameter (Hole Cutout): 90mm (3.54")

• Weight: 1.7Kg

• Image Sensor: 1/3" Panasonic CMOS MN3404

• Lens: 3.6mm Megapixel Lens

• Power:12VDC via VPD Balun (Supplied) 1.4W

• Video: HD-SDI / NTSC or PAL

• HD Model Resolution: 1920 x 1080 (30fps)

• Total Pixels: 2010 x 1108 = 2,227,080
