Iris 516 Joystick Controller f/Multi-Camera, Multi-Controller IRIS516
$1,090.00
Out of stock
SKU
JMS208686
Iris 516 Joystick Controller f/Multi-Camera, Multi-Controller
516 Joystick Controller

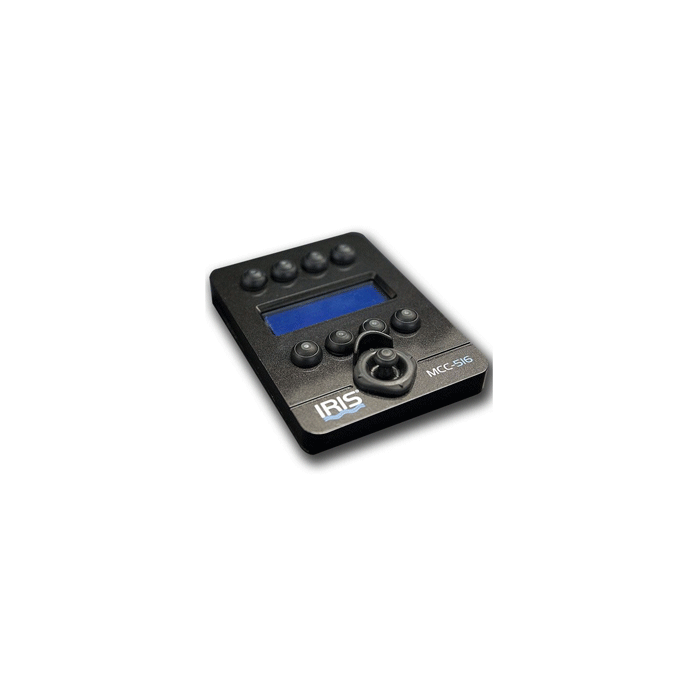

The IRIS516 Marine PTZ Controller is a unique, compact PTZ camera controller designed specifically for use externally or in harsh environmental situations.
With Pelco-D Protocol Support and full support of all Iris Innovations PTZ and Thermal PTZ cameras, the 516 is an extremely versatile and feature packed controller, supporting up to 255 camera addresses and the ability to work with multiple additional controllers on the same RS485 serial data network.
Pan and Tilt control of your on board cameras is acheived via an ultra miniature thumb-stick style joystick, with control of zoom and all other extended features using the 8 dynamic functions keys. Navigation of extended features is acheived by using the feature keys to select menu options presented on a backlit 20x4 character LCD display.
The IRIS516 provides a stylish, functional and feature rich interface to control increasingly complex marine CCTV PTZ and Thermal Imaging cameras in a compact housing designed with both the environmental and aesthetic considerations the marine industry demands.
Features:
The IRIS516 Marine PTZ Controller is a unique, compact PTZ camera controller designed specifically for use externally or in harsh environmental situations.
With Pelco-D Protocol Support and full support of all Iris Innovations PTZ and Thermal PTZ cameras, the 516 is an extremely versatile and feature packed controller, supporting up to 255 camera addresses and the ability to work with multiple additional controllers on the same RS485 serial data network.
Pan and Tilt control of your on board cameras is acheived via an ultra miniature thumb-stick style joystick, with control of zoom and all other extended features using the 8 dynamic functions keys. Navigation of extended features is acheived by using the feature keys to select menu options presented on a backlit 20x4 character LCD display.
The IRIS516 provides a stylish, functional and feature rich interface to control increasingly complex marine CCTV PTZ and Thermal Imaging cameras in a compact housing designed with both the environmental and aesthetic considerations the marine industry demands.
Features:
- Miniature Thumb-Stick 2 Axis Joystick
- Full Control of Extended Camera Features
- Supports Pelco-D Protocol & Iris Extended Pelco-D Protocol
- Intuitive Menu Based Operation
- 8 x Tactile Buttons for Easy Menu Navigation
- RS485 Serial Data Communications
- Multiple Controllers Supported
- Supports up to 255 Cameras
- Waterproof to IP66
- Stylish, Compact Design
| UPC Code | 5060314660388 |
|---|---|
| Manufacturer Part Number | IRIS516 |
| Manufacturer | Iris Innovations Ltd |
