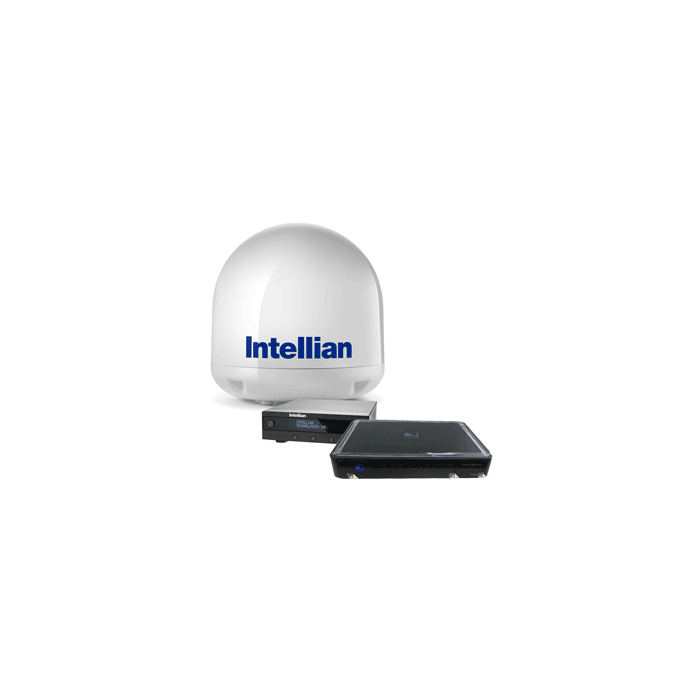

Intellian i3 System w/DIRECTV H24 Receiver B3-301SDT

Intellian i3
This system will NOT provide DirecTV HD Service

The Intellian i3 provides superior tracking performance and efficiency compared to antenna systems in similar size. With its stylish dome, the i3 is ideal for boats over 25 feet. The i3 brings boaters the excitement and variety of satellite TV programs while the vessels are traveling around coastal or blue water.

You will never have to compromise on reception or quality. The i3 offers the highest signal strength available along with patent-pending innovations in Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies. Therefore, the i3 can always offer the most precision tracking capabilities and superior satellite signal receptions while the vessel is cruising at high speed or in rough sea conditions.

The i3 brings you trouble-free installation and operation with its single cable design between the antenna and the control unit. With Intellian MIM, boaters can enjoy flipping channels through automatic satellite switching just like a home system. See the installation guide of DISH Network MIM for further details. Plus, the Intellian i3 has a built-in GPS system to enhance satellite acquisition time and accuracy.

Features:

Fully Automated System

• Automatic satellite search and identification function

• 2-axis step motor for manipulating the pedestal

High Quality Antenna

• 37 cm diameter of parabola-type antenna for receiving Ku-Band (10.7 ~ 12.75GHz) satellite signal

• LHCP/RHCP or Horizontal/Vertical polarization

• Enabling powerful signal gain

Superior Dynamic Tracking

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high speed BLDC motor

Fastest Search Algorithm

• Wide Range Search (WRS) algorithm

• Statistical search algorithm

DVB (Digital Video Broadcasting) Signal Identification

• High speed identification employing a DVB decoder

• QPSK demodulator lock for DSS signals

Built-in GPS System

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

New Antenna Control Unit

• Easy satellite information change and update

• Easy antenna status check and automatic diagnosis

• Easy antenna control using PC interface

• Reliable power supply to the antenna
  Easy Installation

  • Single cable from the ACU to the antenna

  *3 Year Warranty

  DIRECTV H24 Receiver Features:

  • Energy star Compliant

  • Wall Mountable

  • Get access to over 265 channels of movies, shows, and sports

  • Add wireless ethernet support for services like On Demand by purchasing the DIRECTV HPTurbo

  • Integrated Deca technology

  • Parental controls/locks: Enjoy peace of mind over what your children are watching by locking out objectionable programming.

  • DECA Compatible

  • Multi-Room Viewing Compatible

  • MRV Compatible

  • H24 and HR24s installed on systems that DO NOT have a SWiM Switch require B-Band Converters

  • 3D Ready Receiver

  • See whos calling with on-screen Caller ID. View and log Caller ID info provided by your local phone company

  • Faster guide surfing, and channel changing

  • DIRECTV requires a 24 month (lease) commitment on all activated receivers

  • H24 Dimensions: Width 12.5" Height 1.8" Depth 9.4" Weight 6 lbs.

  • H24 comes with the RC64 IR Remote Control
