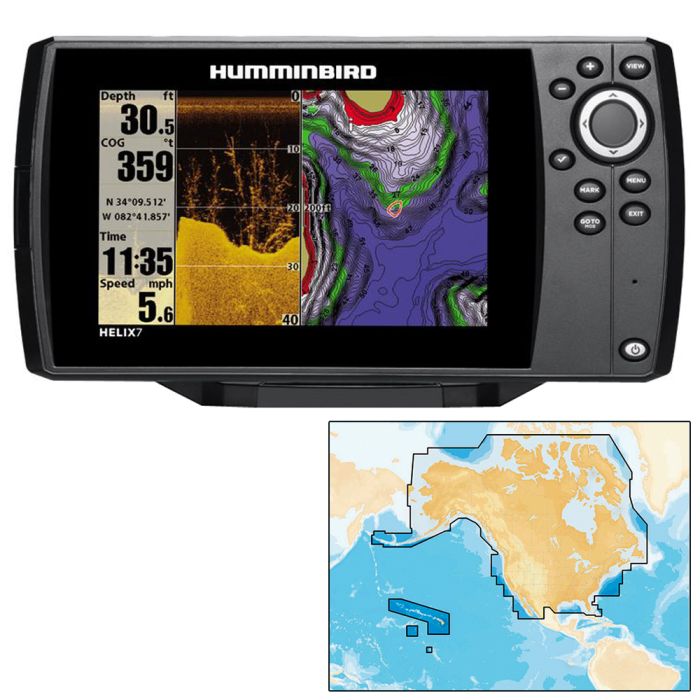

Humminbird Helix 7 DI/GPS Combo with Navionics+ Chart 409830-1/NAV+

HELIX 7 DI/GPS Combo with Navionics+ Chart

Discover fish and structure, then track their every move with the HELIX 7 DI GPS. See fish and vertical lure presentations by viewing Down Imaging® and SwitchFire® Sonar side-by-side on the wide, 16:9 display. The reliable, internal GPS offers 2500 waypoints and 50 routes, so you can return to your most productive spots time and time again. A single, microSD card slot delivers Humminbird LakeMaster, AutoChart™ and AutoChart™ Pro, as well as Navionics Gold/HotMaps.

Technology

Down Imaging Sonar
Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.

SwitchFire Sonar:
Take command of how your sonar returns appear with our Clear and Max Modes.

DualBeam Plus Sonar:
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.

Internal GPS:
GPS antenna built into the head unit.

Upgradable Software:
Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.

High Definition Display:
Provides bright, crystal-clear images for easy viewing in harsh sunlight.

Unimap Cartography:
The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution.

microSD Card Reader:
Use for advanced cartography or to save screenshots, sonar recordings and waypoints or to update your units software.

Specifications

• Display Size - Diagonal: 7"

• Supports Navionics Gold & HotMaps, Lakemaster

• Display Pixel Matrix: 800H x 480V

• Display Type: Color TFT

• Display Colors Grayscale: 256 Colors

• Sonar Standard: Down Imaging DualBeam PLUS

• Standard Sonar Coverage: 16°, 28°, 45° & 75° @ -10db

• Standard Sonar Frequency: 200/455/455/800 kHz

• Target Separation: 2.5"

• Power Output RMS: 500 Watts

• Power Output Peak to Peak: 4000 Watts

• Depth Capability: 350 ft (DI) & 600 ft (2D)

• Temperature: Built In Transducer

• Transducer Standard: XNT 9 DI T

• Transducer Mounting: Transom

• Power Input: 10-20 VDC

• Power Draw: 800 mA

Navionics+ Preprogrammed with All USA/Canada Gold & Hot Maps Data in MSD Format

Navionics+ is a powerful electronic chart solution providing more marine and lakes content than other products on the market, and the best value. Navionics+ is preloaded with ready to use Nautical Charts. Customers register their card for the Freshest Data service to download SonarChart™, Community Edits and free daily updates for the first year from purchase. The US & Canada region allows boaters to choose both freshwater and saltwater charts throughout the entire region. In addition, Navionics+ gives boaters the ability to easily enhance their charts with the sonar logs they collect. 16 GB card and USB reader included.

• Visit navionics.com/downloads-updates to select and download SonarChart™ and Community Edits

• Freshwater and saltwater charts

• Enhance SonarChart™ with sonar logs you collect

• Includes one year of Freshest Data updates to Nautical Charts, SonarCharts™ and Community Edits
