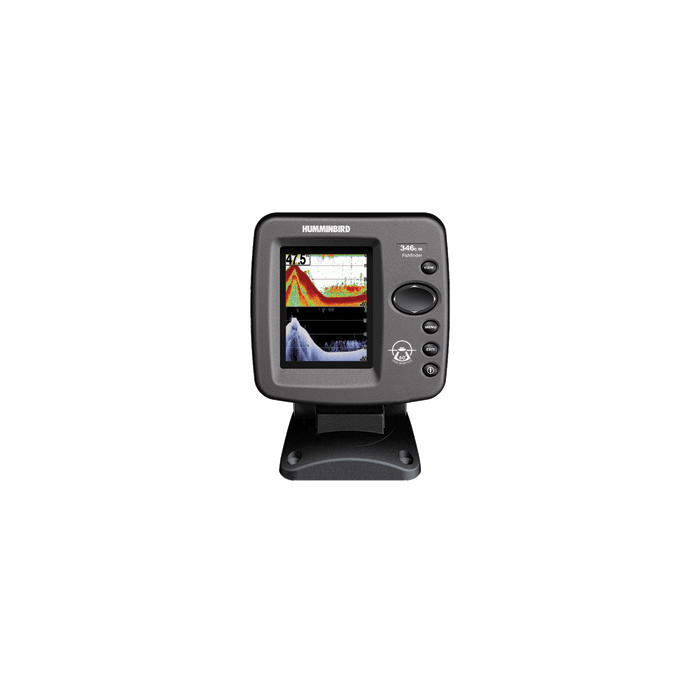

Humminbird 346c DI Sonar Only 4090201

346c DI
Sonar Only

The 346c DI features a brilliant color 320V x 240H 3.5" display with LED backlight and Down Imaging Enhance and advanced DualBeam PLUS sonar with 4000 Watts PTP power output. The ability to turn 2D sonar off while in full screen DI view and get twice the number of DI pings.

Advanced Sonar Features:

• Switchfire Sonar

• Sonar Recording

• Split Screen Zoom

• Split Screen Bottom Lock

• Wide Narrow Cone Split Screen

• Instant Image Update

• Freeze Frame with the ability to Mark Structure on Sonar

• Selective Fish ID+

• Real Time Sonar RTS Window

• Sonar Echo Enhancement

• TrueArch Technology

USER-FRIENDLY TECHNOLOGY

• 3D Chart View

• Large Digits View

• Custom View Selections

• Custom Digital Readout Selection

• Selectable Display Colors

• Selectable Background Colors

• Temperature Alarm

• Triplog

• X-Press™ Menu System

Display
3.5" diagonal
320V x 240H
256 Color TFT

Sonar
Down Imaging® w/DualBeam PLUS™

w/SwitchFire™

200 kHz / 25° @ -10db

455 kHz / 16° @ -10db

455 kHz / 75° @ -10db

800 kHz / 45° @ -10db

Depth: 250' (DI)/600'

Power Output
500W (RMS)
4000W(Peak-to-Peak)

Frequency = 200/455 | Included Transducer = NONE | Resolution (VxH) = 320 x 240 | Screen Size = 3.5" | Speed/Temp = NONE | Transducer Type = NONE | Waterproof Rating = Waterproof | Watts RMS - Max = 500

Category: Marine Navigation & Equipment | Fishfinder/Sounder - Color
