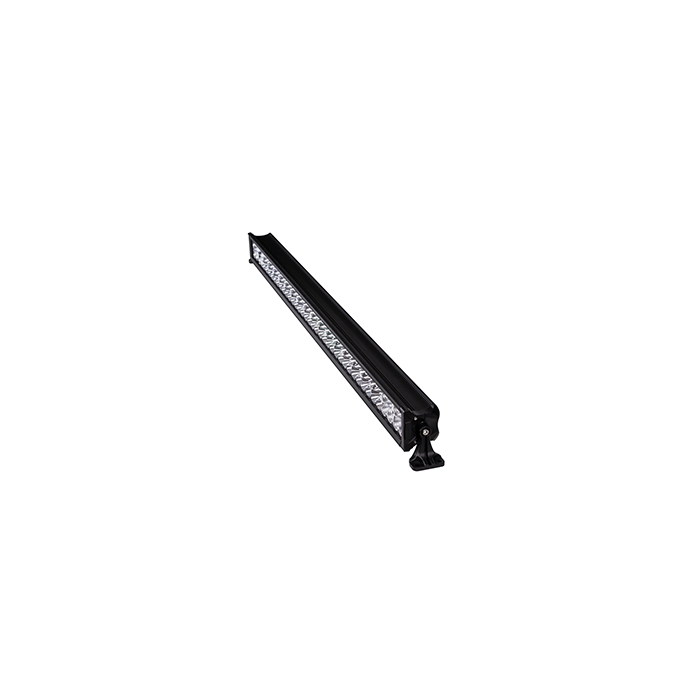

HEISE Triple Row LED Light Bar - 50" HE-TR50

Triple Row LED Light Bar - 50"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 300W (100–3W OSRAM LEDs)
• Raw Lumens: 24000
• LUX @ 10M: 6500
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions:

• Brackets turned outward – 53.125"
• Mounting Bolt Drill – .25"
• Height of Light Bar Itself: 3.50"

• Depth of Light Bar Itself: 3.25"
• Length of Bar w/o Mounting Brackets: 50.50"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 18 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
