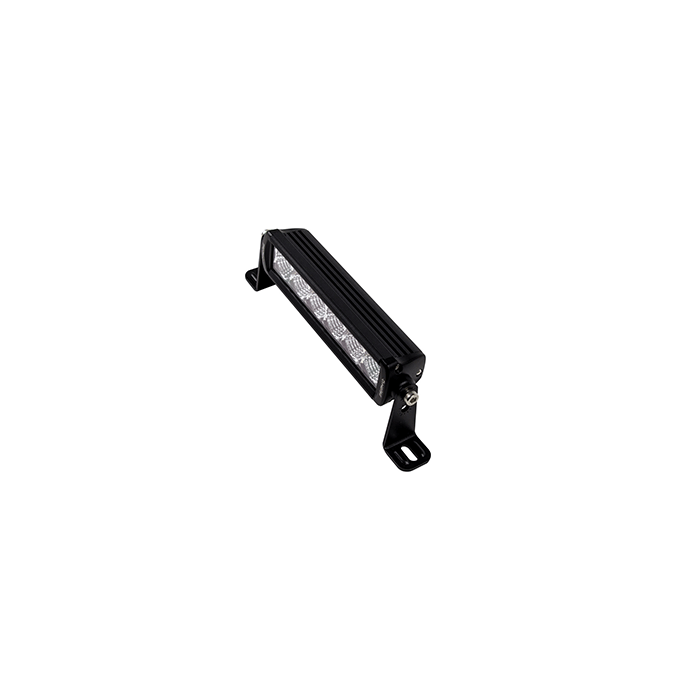

HEISE Single Row Slimline LED Light Bar - 9-1/4" HE-SL914

Single Row Slimline LED Light Bar - 9-1/4"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 18W (6–3W OSRAM LEDs)
• Raw Lumens: 1440
• LUX @ 10M: 22
• Color Temperature: 6000K
• Beam Pattern: 90° Flood

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Side and Bottom Mounting
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 9"
• Brackets turned outward – 11"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: .9 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
