Glomex AIS Antenna w/Supplied "L" Bracket & 66' Coax Cable SGA100SBBK

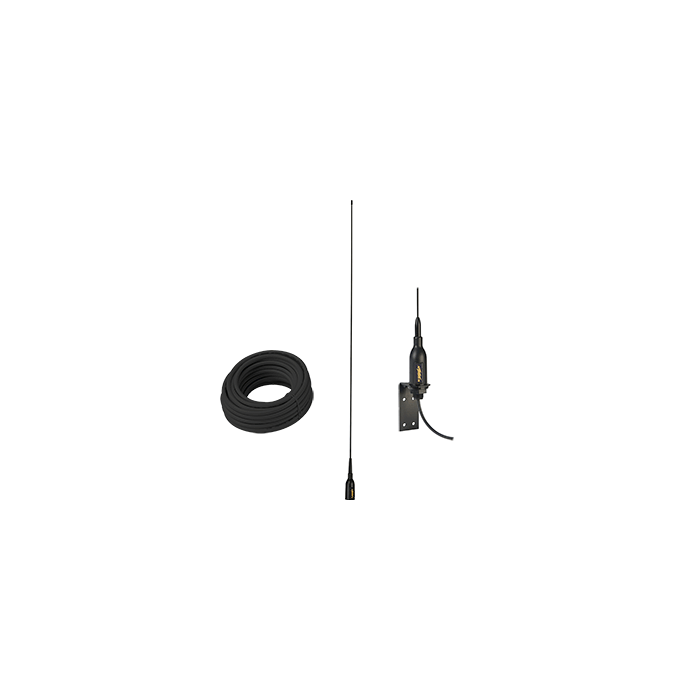

AIS Antenna with Supplied "L" Bracket & 66' Coax Cable

The Automatic Identification System (AIS) is a monitoring system of naval traffic, useful for navigation safety with difficult meteorological conditions (fog or nocturnal navigation). The AIS system operates on 2 expressly dedicated VHF channels (161.975 and 162.025 MHz) and allows the user to receive real time information about the traffic in the surrounding area.

ELBA AIS is a 3dB gain AIS antenna designed for Sailboats: it’s 38” length and very easy to be installed thanks to the supplied “L” bracket. With its black strong fiberglass whip and integrated 66’ RG58C/U coax cable, it’s the best choice to have a stable AIS performance under any navigation conditions.

Specifications:

• Frequency range: 161,975 - 162,025 MHz
• Gain average: 3 dB
• Impedance: 50 ohms
• Polarization: Vertical
• SWR: ≤1,4 at 162 MHz
• Max input power: 50W
• DC ground: Reads 10K ohms
• Antenna lenght: 38”
• Antenna weight: 6.2oz
• Termination: Cable
