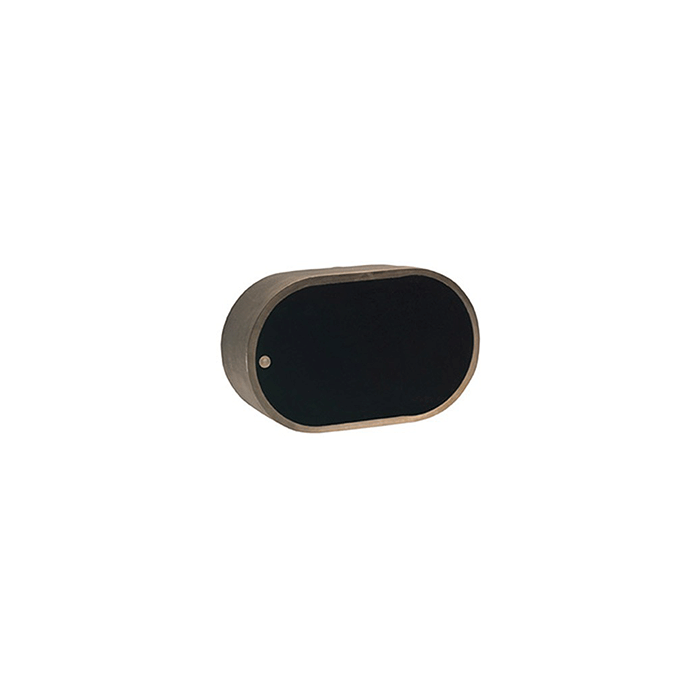

Garmin PM265LM 1kW Pocket Mount Transducer w/Temp, 42-65 & 85-135kHz 010-11812-20

PM265LM 1kW Pocket Mount Transducer with Temp, 42-65 & 85-135kHz

Garmin's pocket mount transducer uses narrow beams to send depth and temperature as well as sonar return data to your Garmin Marine Network.

A popular choice for boat builders, this 1 kW bare wire bronze transducer has a maximum depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; and a beamwidth of 16 to 25 degrees and 6 to 10 degrees. The pocket mount is installation dependent.

This is the best performing 1 kW pocket mount available.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features:

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 42 kHz to 65 kHz
• 25° to 16° beamwidth (port-starboard)
• Medium—CHIRPS from 85 kHz to 135 kHz
• 16° to 11° beamwidth
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• Bronze transducer housing
• Hull Type: Fiberglass only
