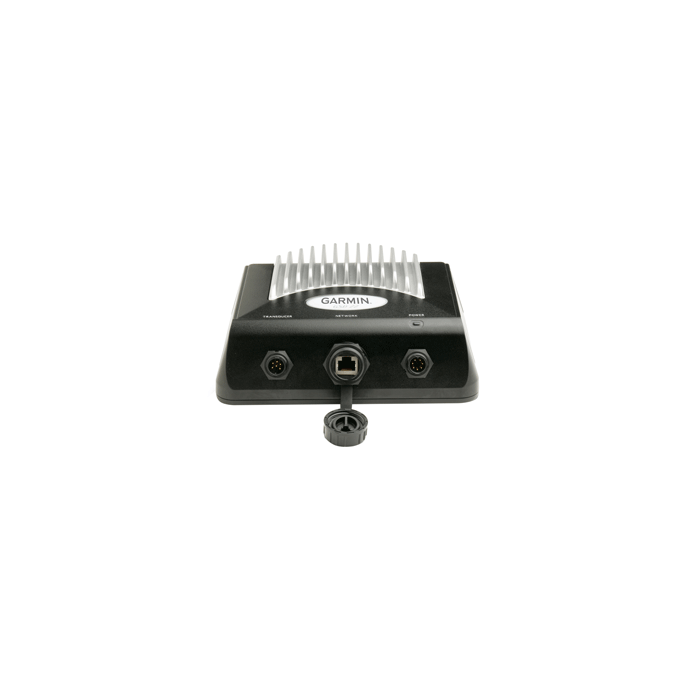

Garmin GSD-22 Sounder Module NOH *Reman 010N039700

Garmin GSD 22 "Black Box" Remote Sounder Module NOH Reman
Add depth to your chartplotter view with the GSD 22 remote sounder.
The GSD 22 is Garmin's first digital sonar, they are robust units designed to operate with stand-alone chartplotters or integrate with the Garmin CANet and Marine Networks.

The GSD 22 is a powerful remote sounder that plugs directly into the Garmin
Marine Network for use with our network chartplotters or into the new
Garmin CANet for use with the 292/392/492 series chartplotters. Ultrascroll
technology keeps the display scrolling at live-action speeds, while the
units digital design and up to 2 kW of transmit power (depending on
transducer used) provide extraordinary target definition and deep water
performance. Transmit power and receiver gain automatically adjust to
produce excellent shallow water performance as well. The GSD 22 is dual
frequency (200/50 kHz) and works with everything from a standard 500 W
transom mount transducer to heavy-duty 2 kW thru-hull or in-hull
transducers. Reaches depths to 5,000 feet.

Please Note: This product does not include a transducer. Garmin offers a complete selection of transducers to be purchased separately as accessories.

The following units are compatible with GSD-22

• 292

• 392

• 492

• 2100 Series

• 2200 Series

• 3000 Series

• 3200 Series

Audio Capable = No | Frequency = 200/50 | Service Carrier = NONE | Waterproof Rating = NONE | Watts RMS - Max = 500x - 2kw

Category: Marine Navigation & Equipment | Black Box Modules
