GARMIN GNX WIRELESS SAIL PACK

GNX™ Wireless Sail Pack

The Information You Need to Make Confident Decisions

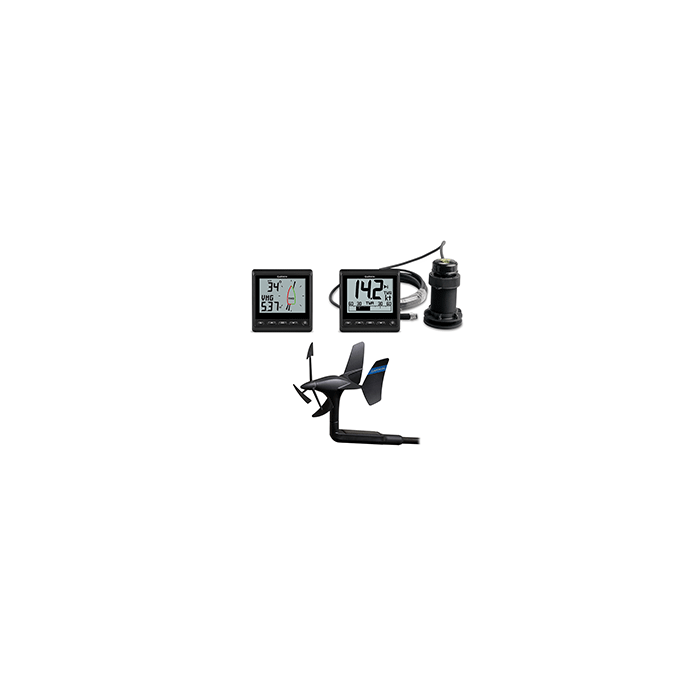

• Includes Garmin GNX™ Wind and GNX 20 marine instruments, gWind™ Wireless 2 transducer and DST800 thru-hull smart transducer

• GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays

• gWind Wireless 2 transducer eliminates running wires through masts up to 50'

• DST800 transducer provides water depth, water speed and water temperature data

• Easy plug-and-play installation with NMEA 2000® network

With a GNX Wireless Sail Pack, you will have all the equipment you need to know what's going on with the wind and the water.

GNX Wind Instrument
GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000® network to show 2 data fields anda digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix® 3 GPS marinesmartwatch via ANT® technology to stream wind data directly to your wrist.
Specifications:

• Physical dimensions: 4.3" x 4.5" x 1.2" (110 x 115 x 30mm)

• Display size, WxH: 3.3" x 2.4"; 4.0" diagonal (83 x 60mm; 101.6mm diagonal)

• Weight: 8oz (230g)

• Water rating: IPX7

• NMEA 2000 certified: Yes

• Power consumption: 0.35W (day); 0.4W (night)

• Voltage range: 9-16V (from NMEA 2000)

• Mounting options: Flush or Flat

• Temperature ra
