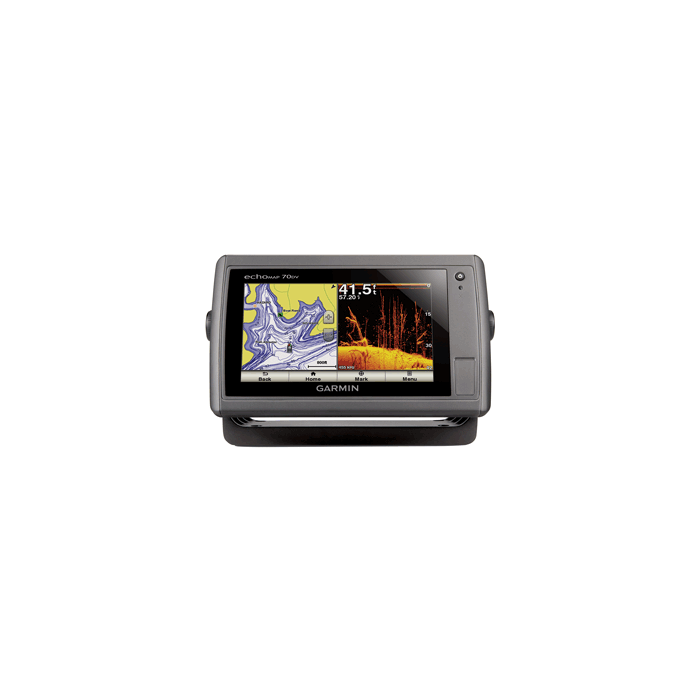

Garmin echoMAP™ 70dv Fishfinder/Chartplotter Combo w/7" WVGA Touchscreen, TM Transducer & U.S. Coastal 010-01301-00

Garmin echoMAP™ 70dv Fishfinder/Chartplotter Combo w/7" WVGA Touchscreen, TM Transducer & U.S. Coastal

echoMAP™ 70dv Fishfinder/Chartplotter Combo with 7" WVGA Touchscreen, Transom Mount Transducer and U.S. Coastal

The echoMAP 70dv fishfinder/chartplotter combo offers amazing features on
its 7" pinch-to-zoom touchscreen. Built-in advanced HD-ID™ sonar and
DownVü™ scanning sonar gives you a nearly photographic view under
the boat. Add an optional GCV™ 10 black box sonar (sold separately)
for DownVü™ and SideVü™ scanning with CHIRP sonar
technology.

The built-in 10 Hz GPS/GLONASS receiver updates your position and heading 10 times per second to display fluid vessel movement and dramatically improves your ability to accurately mark and navigate right to 5,000 waypoints. The echoMAP 70dv also includes sonar-recording capability that coordinates the timing of the sonar return with your boat's position and saves digital information for playback on a computer using HomePort™ planning software. Supplemental map sharing is enabled for multiple standalone chartplotters. For even more functionality, wirelessly connect to Apple® (mobile digital device) for BlueChart® Mobile.

Available with preloaded LakeVü™ HD maps - more than 17,000 lakes plus more than 5,700 HD lakes with 1' contour shoreline to shoreline - or BlueChart g2 and BlueChart g2 Vision coastal maps.

Features:

• 7" WVGA touchscreen with pinch-to-zoom

• Garmin HD-ID™ sonar and DownVü™ scanning sonar for a
  nearly photographic view of fish and structure under the boat

• Available with preloaded LakeVü™ HD or BlueChart® g2
  coastal mapping

• Transmit power (RMS)/(Peak to Peak): 500W/4,000W, includes water surface
  temperature

• Supports SideVü™ scanning with CHIRP sonar technology
  (requires GCV™ 10, sold separately)

In the Box:

• echoMAP™ 70dv with preloaded LakeVü™ HD or U.S.
  BlueChart® g2 coastal maps (depending on the version)

• 8-pin all-in-one 77/200 kHz HD-ID™/DownVü™ transducer
  with transom and trolling motor mounts

• Power/data cable

• Bail mount

• Flush mount

• Protective cover

• Documentation

Basemap = NONE | Card Format = Micro SD | Cartography - Preloaded = Yes | Cartography Brand = Garmin | Cartography Type = NONE | Frequency = 50/77/200 kHz, DownVü | Included Transducer = Yes | Internal/External Antenna = Internal | Resolution (VxH) = 800 x 480 | Screen Size = 7" | Screen Type = Color | Speed/Temp = NONE | Touchscreen = Yes | Transducer Type = Transom Mount | Waterproof Rating = NONE | Watts RMS - Max = 500W (RMS)/4,000W (peak to peak) | Waypoints/Routes = 5000/100 | Weather Capable = NONE
