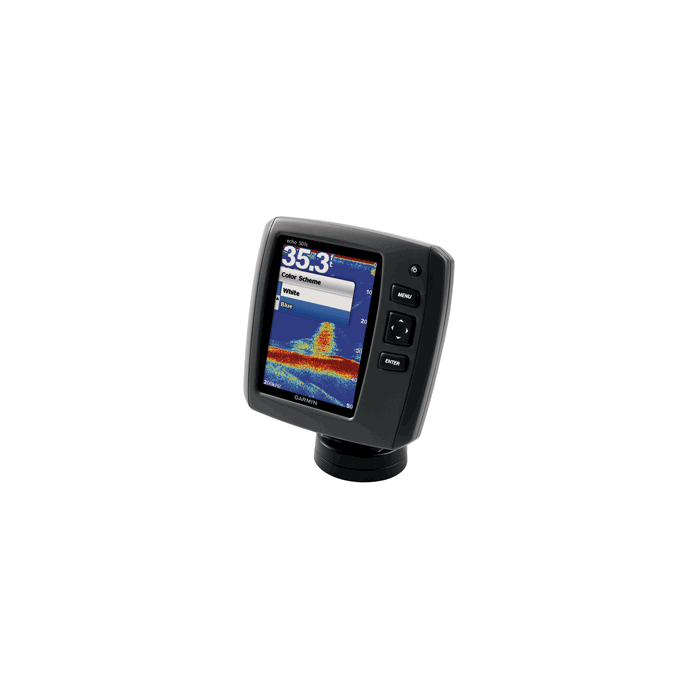

Garmin echo 501C Fishfinder w/Dual-Beam Transducer

Garmin echo 501c

The Garmin echo 501c is a great fishfinder. Exclusive Garmin advanced HD-ID sonar includes 77/200kHz transducer (supports 50/200 kHz transducer sold separately). Powerfully simple streamlined interface features 4,000W peak-to-peak power, Smooth Scaling depth range adjustments, and sonar history rewind. Crisp 5-inch, 256-color QVGA display offers extra sharp resolution and detail on fish arch returns, structure and bottom soundings with the power to scan to a 1,900 feet maximum depth. Wide viewing cone angles (60/120) optimize performance for targeting fish beyond the sides of your boat in deep or shallow water. Includes quick-release tilt/swivel mount and transom/trolling motor transducer mounts.

Features:

• Excellent target separation and bottom tracking

• Exclusive advanced HD-ID sonar includes transducer

• Display: 5-inch diagonal / 256 colors (64K capable)

• Resolution: 320 x 234 QVGA

• Smooth Scaling depth range adjustments

• Sonar history rewind

• Quick-release tilt/swivel mount and transom/trolling motor transducer mounts included

• Transmit power (RMS)/(Peak-To-Peak): 500W/ 4,000W

• Includes water surface temperature

• Frequency: 77/200kHz included (supports 50/200kHz, sold separately)

• Maximum depth: 1900 ft

• 10V - 28V input

Frequency = 50/77/200 | Included Transducer = NONE | Resolution (VxH) = 234 x 320 | Screen Size = 5" | Speed/Temp = NONE | Transducer Type = NONE | Waterproof Rating = NONE | Watts RMS - Max = 500W

Category: Marine Navigation & Equipment | Fishfinder/Sounder - Color

Manufacturer Part Number: 010-01261-00
