FORESPAR SR-2 JIB ROLLER

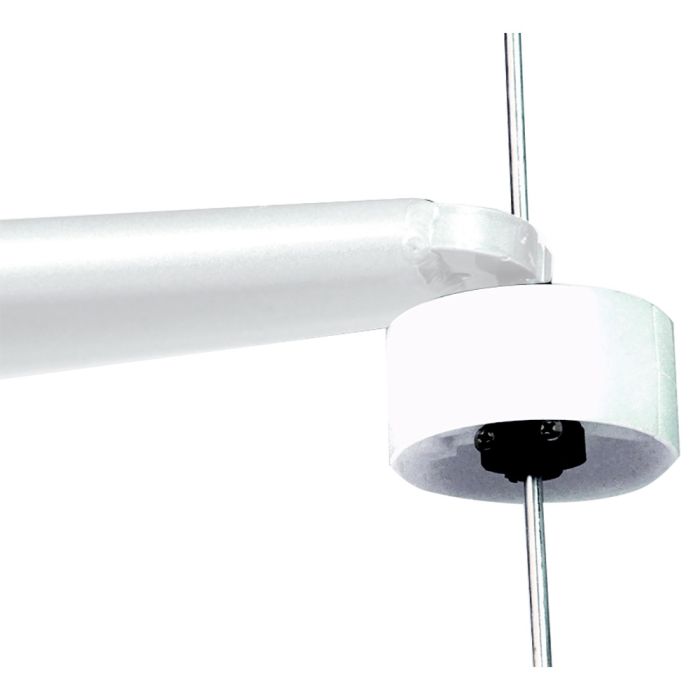

FORESPAR SR-2 JIB ROLLER SR-2 Jib Roller The Forespar SR-2 Jib Roller with fit shrouds from 3/16 thru 3/8 wire diameter. Use the proper size pair of insert liners according to the table below: 3/8 wire use no insert 5/16 wire use #1 inserts 9/32 wire use #2 inserts ¼ wire use #3 inserts 7/32 wire use #4 inserts 3/16 wire use #5 inserts The Jib Rollers may be placed just above or below the spreader tips; however, installation will be easier if located below the spreaders. In this instance, you can pre-assemble the parts while on deck and reduce the possibility of losing parts while hanging in a boatswains chair. Have a 3 inch piece of masking tape within handy reach (stick it to the shroud). Select the proper inserts, place them into the two halves of a hub and fit them around the shroud. Use the tape to loosely hold these parts together. Note that the hubs have two clearance screw holes at one end. Match these with the smaller holes at the other end of the other half. It is impo
