Forespar SR-2 Jib Roller 210003 210003

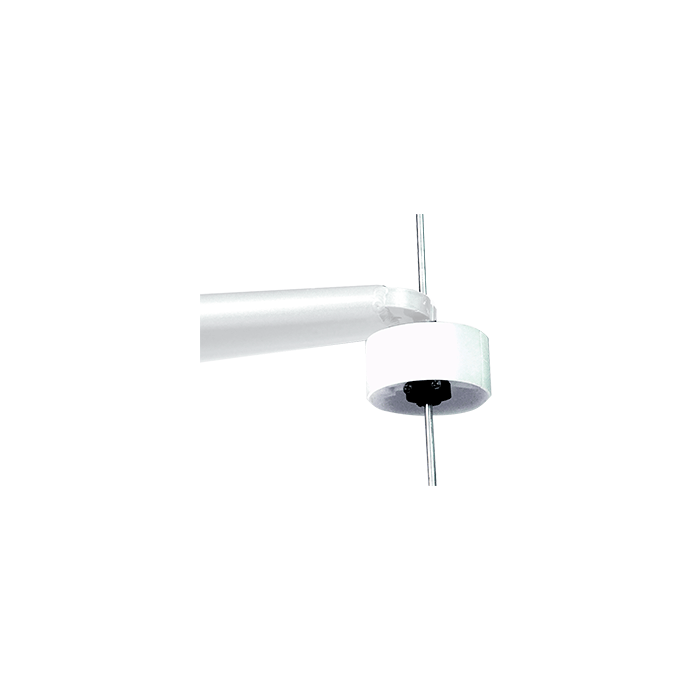

SR-2 Jib Roller

The Forespar® SR-2 Jib Roller with fit shrouds from 3/16” thru 3/8” wire diameter.

Use the proper size pair of insert liners according to the table below:

• 3/8” wire – use no insert
• 5/16” wire – use #1 inserts
• 9/32” wire – use #2 inserts
• ¼” wire – use #3 inserts
• 7/32” wire – use #4 inserts
• 3/16” wire – use #5 inserts

The Jib Rollers may be placed just above or below the spreader tips; however, installation will be easier if located below the spreaders. In this instance, you can pre-assemble the parts while on deck and reduce the possibility of losing parts while hanging in a boatswain’s chair. Have a 3 inch piece of masking tape within handy reach (stick it to the shroud).

Select the proper inserts, place them into the two halves of a hub and fit the
