Floscan 9000-231-1 Single Engine Interface System - EFI & Carb Outboards Only - 150-350HP 9000-231-1

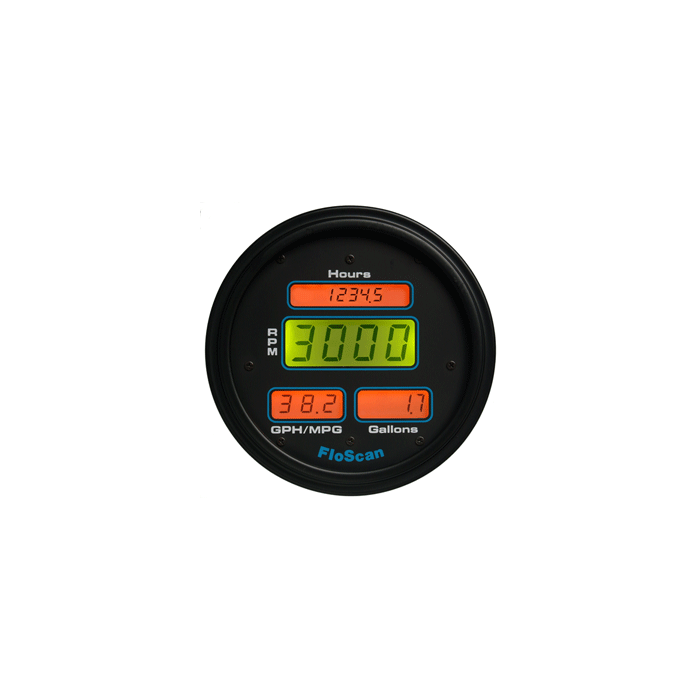

9000 Multifunction Meter

Our Series 9000 GPS Interface System combines a digital LCD Engine Hour Meter, Tachometer, Fuel Flowmeter, Fuel Totalizer and nautical Miles Per Gallon over the ground in a single 3-3/8" diameter instrument which fits the panel space of a standard tachometer. The speed signal required to calculate the nMPG reading is obtained from GPS and Loran systems having a NMEA 0183 serial port output. The direct display of nautical Miles Per Gallon over the ground gives the skipper a powerful new tool to set optimum fuel efficiency under all conditions and to determine precisely how far he can go with his remaining fuel.

Fuel Type: Gas
Engine Qty: Single
Engine Type: EFI & Carb Outboards Only
Fuel Sensor: 231
Max HorsePower: 150-350HP


Features:

• Microprocessor based electronics with 2-stage adjustable calibration of GPH & gallons used for superior accuracy.
• Simultaneous independent display of Engine Hour Time, RPM, GPH, gallons consumed, and nautical MPG. Twin gas model displays the MPG rate for BOTH engines underway.
• RPM readout accurate to 10 RPM. Easily connects to existing tach signal wires.
• GPH and Totalizer readings displayed in tenths of a gallon. Totalizer capacity up to 99,999 gallons.
• Dual color (amber/green) backlighting of LCD provides for easy night viewing.
• Requires 1 Momentary ON / Constant OFF toggle button switch for resetting fuel totalizer reading
• Meter fits 3-3/8" panel opening (standard tach size). Can replace existing tachs in panel.
