Floscan 7000-20B-1 Single Engine Multi System - I/B I/O O/B - 350HP Max 7000-20B-1

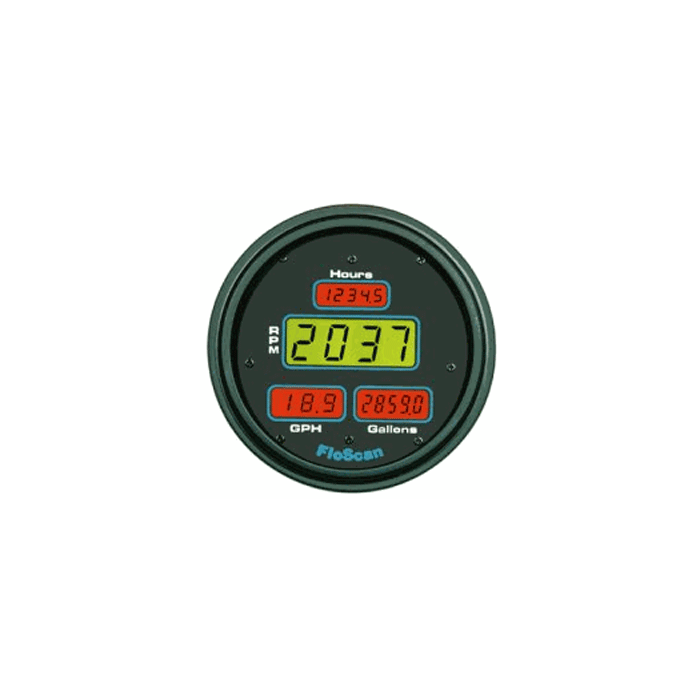

7000 Multifunction Meter

Our Series 7000 Multifunction Meter combines a digital LCD Engine Hour Meter, Tachometer, Fuel Flowmeter, and Fuel Totalizer in a single 3-3/8" diameter instrument which fits the panel space of a standard tach. A popular option is to replace the existing tach(s) with this system thus eliminating the need to cut new holes in the panel.

Fuel Type: Gas
Engine Qty: Single
Engine Type: Inboard, Outboard, Inboard/Outboard
Fuel Sensor: 20B
Max HorsePower: 350HP

Features

• Microprocessor based electronics with 2-stage adjustable calibration of GPH & gallons used for superior accuracy.
• Simultaneous independent display of Engine Hour Time, RPM, GPH, and gallons consumed.
• RPM readout accurate to 10 RPM. Easily connects to existing tach signal wires.
• GPH and Totalizer readings displayed in tenths of a gallon. Totalizer capacity up to 99,999 gallons
• Dual color (amber/green) backlighting of LCD provides for easy night viewing.
• Requires 1 Momentary ON / Constant OFF toggle button switch for resetting fuel totalizer reading.
• Meter fits 3-3/8" panel opening (standard tach size). Can replace existing tachs in panel.
