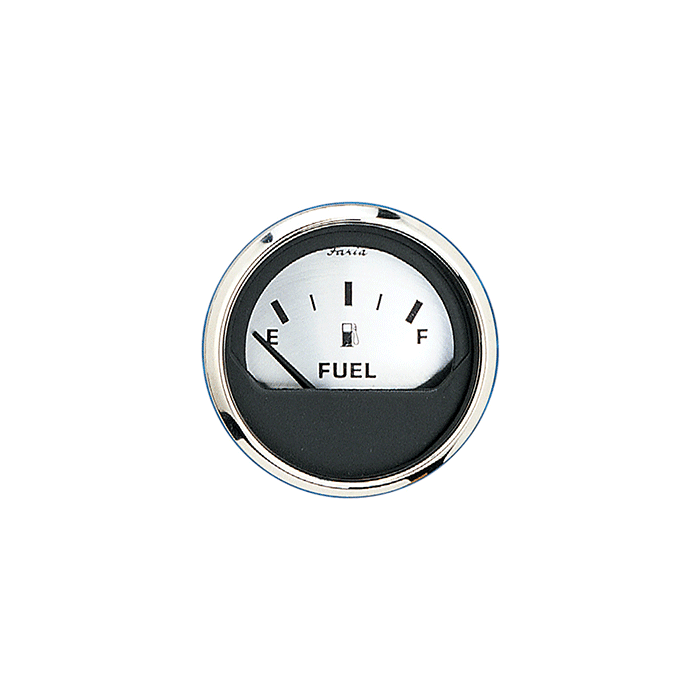

FARIA SPUN SILVER 2" FUEL LEVEL GAUGE (E-1/2-F) 16001

Spun Silver 2" Fuel Level Gauge (E-1/2-F)

Perimeter-lighted Silver dial with bold Black graphics, polished stainless steel bezel, contoured Black pointer, and domed glass lens.

Fuel Level gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.

2"- Hole Size: 2.0625" (53mm)

Specifications:

• Domed, Scratch Resistant Lens
• Stainless Steel Bezel
• LED Illuminating around the Perimeter of the Dial

Factory P/N GP9932

*Sold as an Individual

**Gauge Cover not Included
