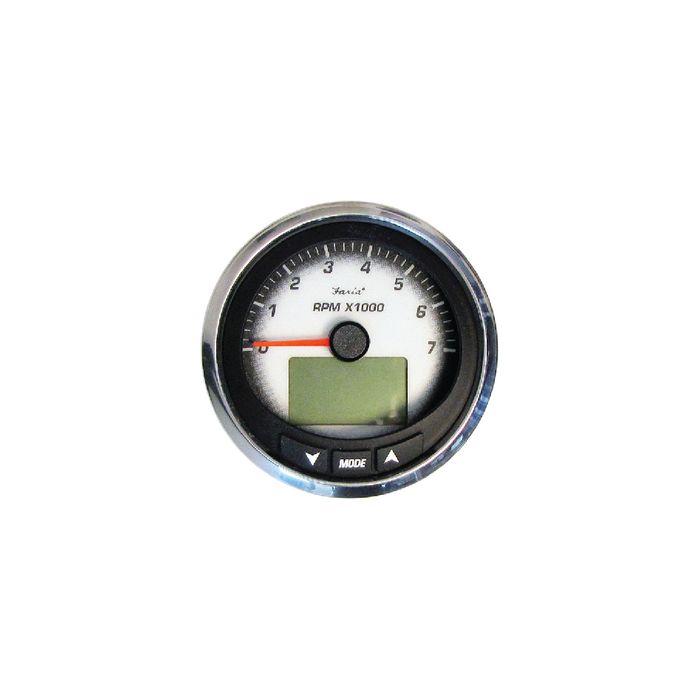

Faria Instruments Blk Fade Tacho 7000Rpm Yamaha FAR 41021

Faria Instruments Blk Fade Tacho 7000Rpm Yamaha

Premium digital gauges with stylized black fade dial, red back-lit pointer, LED back lighted dial, black mask and fog-resistant polycarbonate lens. All guages have the look and function of an analog gauge, but the pointer is driven with a digital stepper motor for increased accuracy.
MG3000 units feature a daylight readable LCD that is visible even in direct sunlight. They can be customized with user definable screens and alarms and connect to the CAN bus to communicates directly with the engine ECU. Engine data, fault codes and alarms are displayed on the Tach's LCD display. The Tach also features 3 analog inputs which can be used for air temperature, trim, fuel level and water pressure and a NMEA 0183 input for a GPS antenna for Lat/Long, Heading, COG and clock.
The tachometer is the main unit and all other gauges connect through the tachometer with Plug and Play connectors.

• 41001 requires a KTF NMEA harness to connect to the NMEA backbone


• 41002 requires a KTF044 harness to connect to the SmartCraft backbone


• 41021 requires a KTF070 harness to connect to the Yamaha backbone


• 4" gauges use a 3-3/8" hole, 2" gauges use a 2-1/16" dia. hole

Size: 4"
Type: MG3000 Tachometer (Yamaha)
Dial: 7000 RPM

SKU: FAR 41021 678-41021
Manufacturer Part Number: 41021
Category: Engine / Gauges
