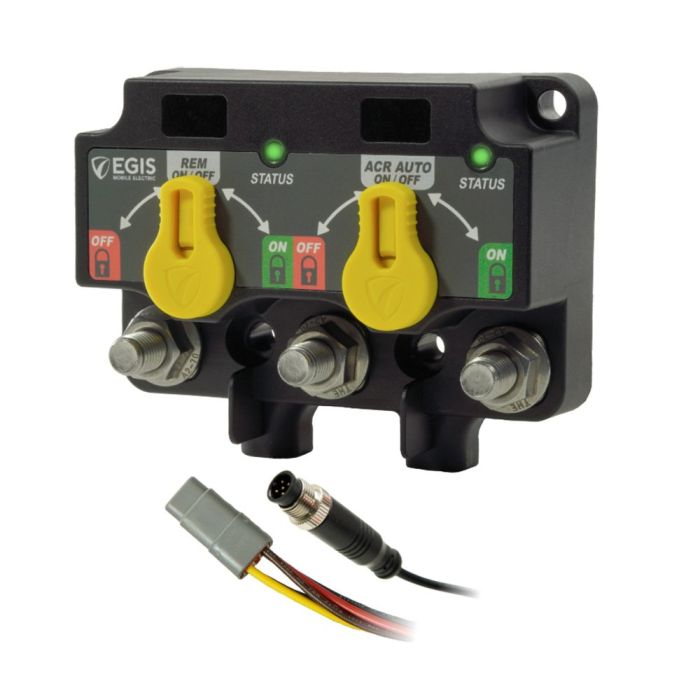

EGIS XD NMEAD 2000 DUAL ACR/RELAY W/KNO

EGIS XD NMEAD 2000 DUAL ACR/RELAY W/KNO Dual XD - NMEA 2000 - ACR/Relay with Knobs - 8 Position DT Features: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration Control switches, monitor switch status, and battery voltage
