EGIS PDM 14 CIRCUIT + GROUND 175A 12V W/

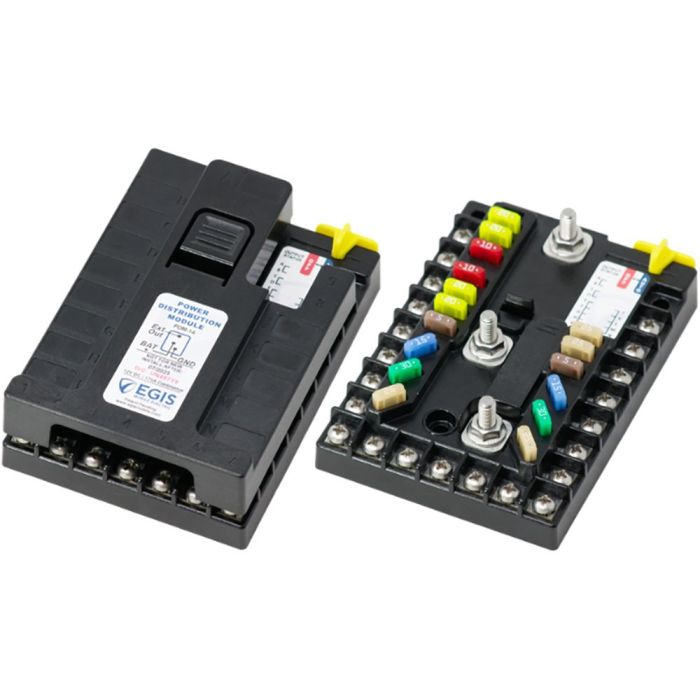

EGIS PDM 14 CIRCUIT + GROUND 175A 12V W/ PDM 14 Circuit + Ground 175A 12V with Kill SwitchDesigned for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks. Features: For 12-volt systems, the allowed voltage range is 8-18 VDC Total continuous output limit: 175 amps Three load groups with a continuous output of 75-115 amps Optional time delay 0-10 hrs Optional low voltage protection 11-12.2 volts Offload current draw 1.3 mA. This item is sold by JMSOnline.net, providing quality marine products and excellent customer service to our valued federal clients.
