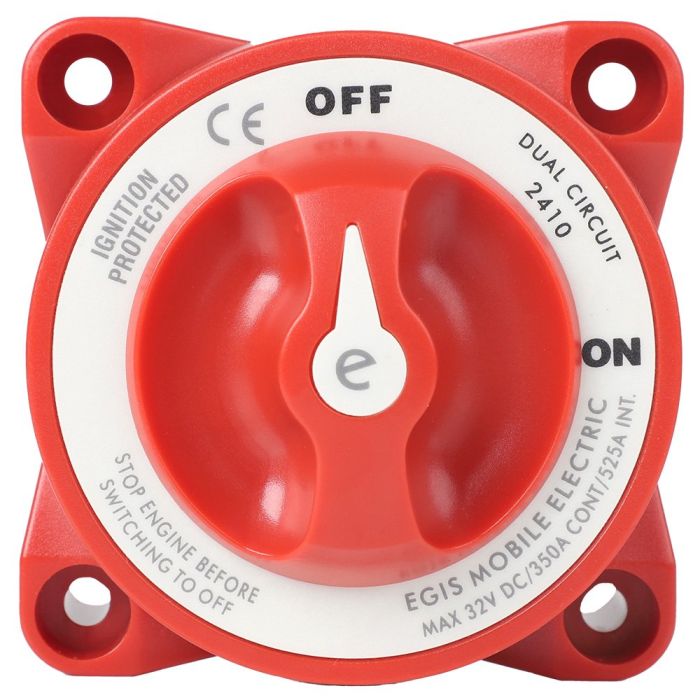

EGIS E-SERIES 350A DUAL CIRCUIT BATTERY

EGIS E-SERIES 350A DUAL CIRCUIT BATTERY E-Series 350A Dual Circuit Battery Switch Off/On Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation. Ignition Protected - Safe for installation in closed compartments with potential explosive gases. Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments. Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types. Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials. Specifications: Maximum Voltage (Single Circuit): 48 Vdc Maximum Voltage (Selector / Dual Circuit): 32 Vdc Stud Size And Thread: 3/8-16 Terminal Stud Torque: 140 in-lbs (15.8 N-m) Ring Terminal Size Acceptance: 3/8 (M10) Mounting Holes: #1/4" (M6) Screw Live Switching Rating: 25 Amps Ignition Protection Rating: SAE J1171 / ISO 8846 Bulkhead / Panel - Mo
