Digital Yacht GPS105 NMEA GPS Sensor ZDIGGPS105

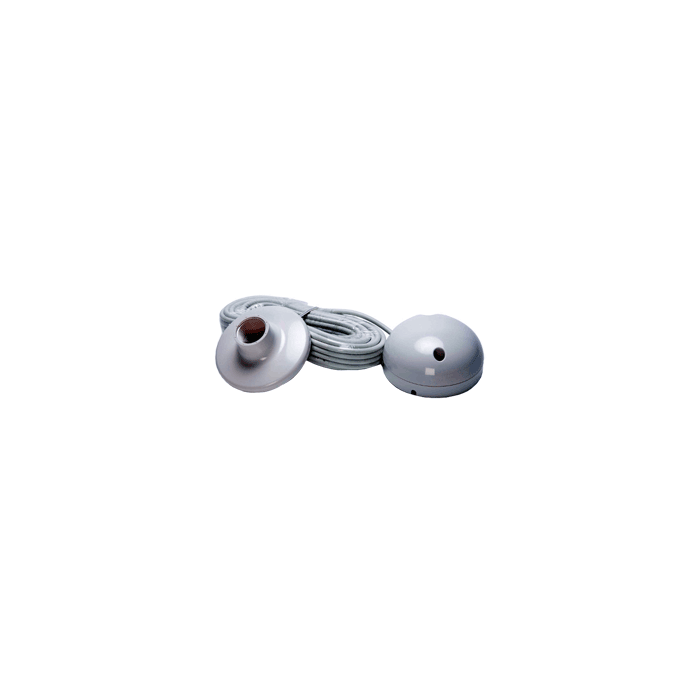

GPS105 Smart GPS Sensor

Marine GPS antenna with IP X7 waterproof, anti-UV and chemically stabilised plastic housing. This general purpose, high sensitivity GPS, will operate from either a 12v or 24v DC supply and has an industry standard NMEA0183 data output.

Ideal for use with DSC radios, radar, chart plotters or any other marine devices that require GPS data, a simple 4 wire power and data connection and zero configuration, make this an easy and reliable GPS to install and use.

The rugged, waterproof housing with integral 1" 14TPI industry standard thread mount, can be easily mounted outside on a rail, radar arch or other suitable location.

Features:

• WAAS/EGNOS accuracy of 3m

• Normal GPS accuracy of 10m

• Smart antenna with all electronics and patch antenna built-in

• 12 parallel tracking channels

• Fast time to first fix - Cold Start < 120 secs and Warm Start < 45 secs. Typical <30 secs

• Low power consumption < 150mA

• On-board rechargeable battery for sustained almanac and clock parameters

• Interference filter for radar and VHF channels

• NMEA 0183 output version 2.20
  (GGA, GLL, GSA, GSV, RMC + VTG)

• Operating temp -30 deg C to +80 deg C
