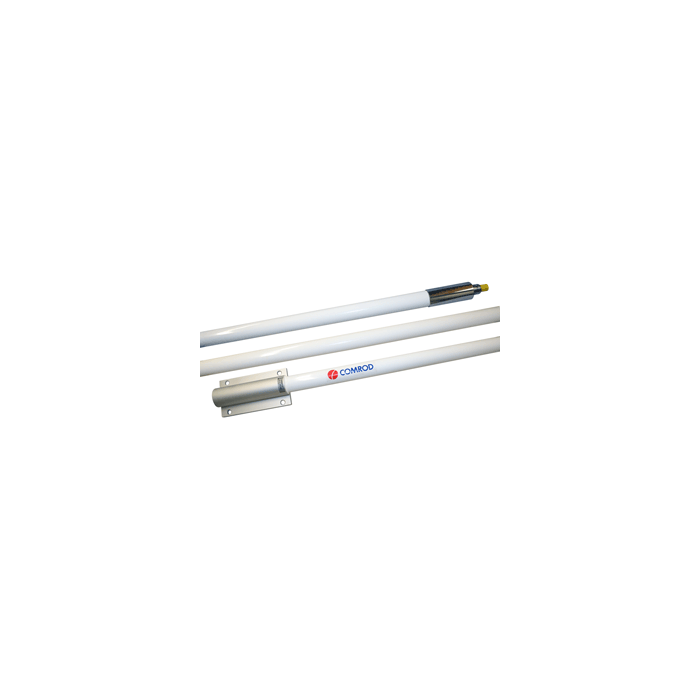

Comrod AT82M HF Mast Mount Antenna - 26' 21310

AT82M HF Mast Mount Antenna - 26'

AT82 is a high performance fiberglass transmitting antenna for marine coastal and HF telephone bands. It matches well to modern SSB marine telephone transmitters. The AT82 antenna can be part of any MF/HF communication system, but is specifically designed to satisfy the demands of the Maritime GMDSS.

Specifications:

• Design: Self supporting fibreglass rod with hot dip galvanized mounting hardware

• Height: 26'

• Wind rating: 55 m/s = 125 mph

• Ice buildup: Not affected

• Waterproof rating: IP67

• Finish: Polyurethane lacquer, white

• Temperature range: -55°C, +55°'C, -67°F, +131°F

• Frequency range 1.6-30 MHz

• Polarization: Vertical

• Pattern: Omnidirectional

Mounting:
Mast/Wall Mounting by means of U-bolts with nuts (included) or directly on wall or steel plate.
